Product Origin:
USAWeight:
0.3KGDimension:
14cmx13cmx3.5cmCondition:
new and originalLead Time:
in stockCertificate:
coo/test report/warranty letter
Technical Specifications for 1756-OA8E
|
Manufacturer |
Automation |
|
Condition |
100% New Original |
|
Brand |
|
Power Dissipation |
5.5 Watts |
|
|
Part Number/Catalog No. |
1756-OA8E |
Backplane Current |
200 milliamps |
|
|
Module Type |
AC Output Module |
Isolation Voltage |
50 Volts |
|
|
Manufacture Year |
2021 |
Operating Voltage Range |
74-132 Volts AC |
|
|
Product Package |
Original Package |
UPC |
10612598171399 |
|

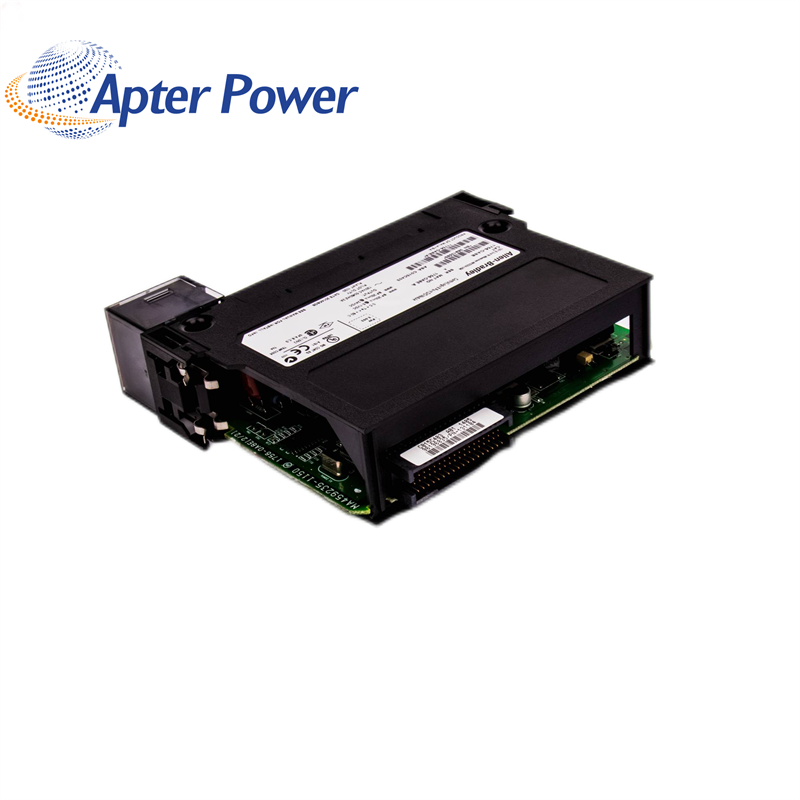

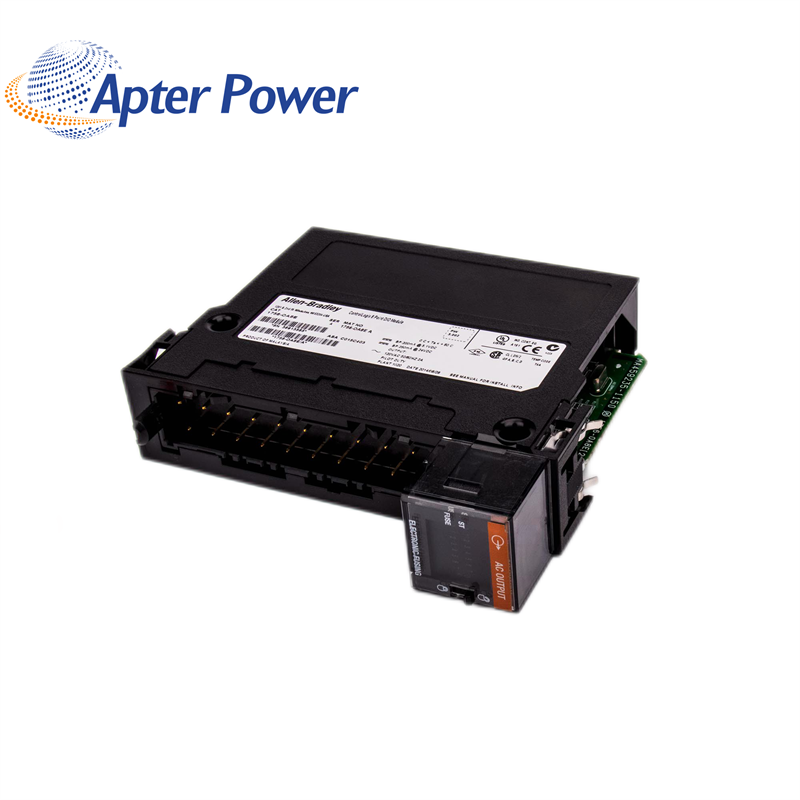

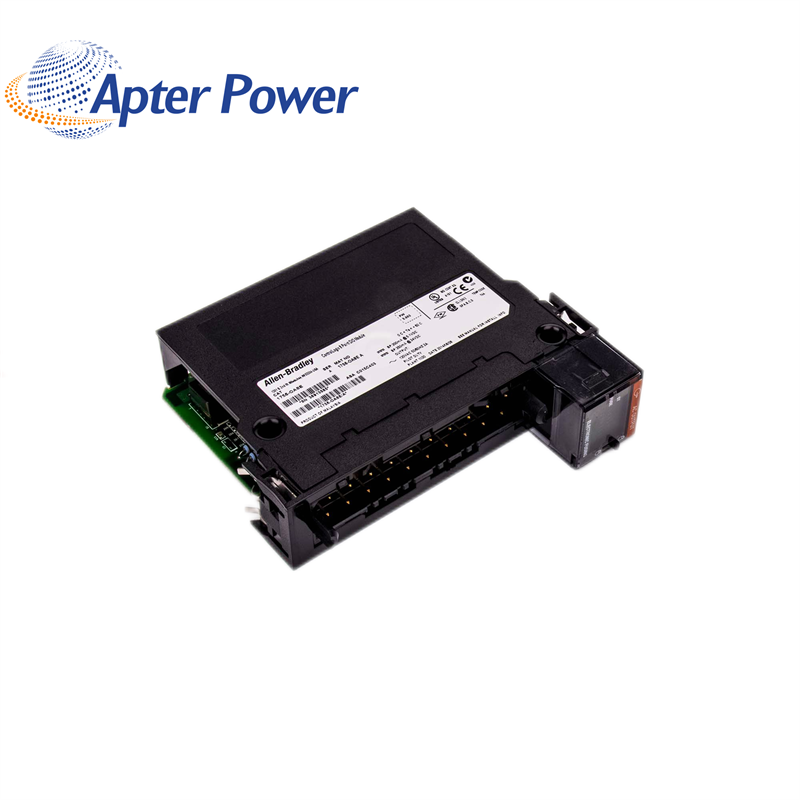

The 1756-OA8E ControlLogix 120V AC Output Digital Module by is a digital output module installed in any slot on the ControlLogix chassis and it has 8 electronically-fused 120V AC outputs. It comes with an output voltage range of 74-132V AC at 47-63 Hz and an output linger time of 9.3ms at 60 Hertz and 11ms at 50 Hertz for ON/OFF and OFF/ON.
The 1756-OA8E has a 200mA backplane draw current at 5.1V and 250mA at 24V and a total backplane power rating of 7.02 Watt. It has a power dissipation of 5.5 Watt and 18.76 BTU/hr thermal dissipation. The 1756-OA8E’s maximum OFF state leakage current is at 3mA per point and the voltage lost in its circuit peaks at 4V in the ON state.
The 1756-OA8E has an output delay time of 9.3 ms @ 60 Hz or 11 ms @ 50 Hz for Off to On and On to Off output transitions. This module may be installed to any available slot of the 1756 chassis with a current draw of 200 mA @ 5.1 VDC and 250 mA @ 24 VDC and total backplane power requirement of 7.02 Watts. It has a maximum power dissipation of 5.5 Watts @ degrees C (140 degrees F) and Thermal dissipation of 18.76 BTU/hr.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
What happens next?
 |
1. Email confirmation You will get an email confirming that we have received your enquiry. |
 |
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
 |
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |

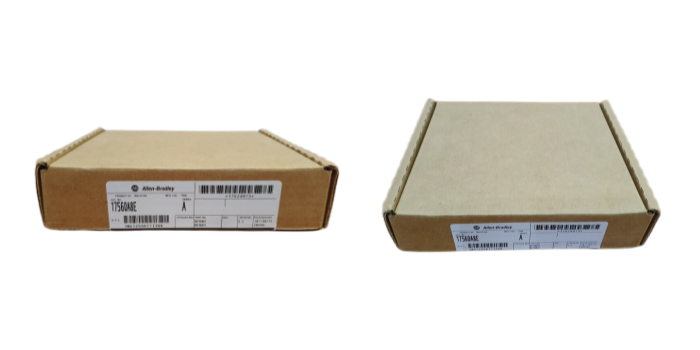

Original factory packing
Shipping packing process
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product,you can send it back to replace.
What happens next?
|
|
1. Email confirmation You will get an email confirming that we have received your enquiry. |
|
|
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
|
|
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Please click the link below to access the product manual.
uploadfile/downloads/1756-OA8E.pdf
