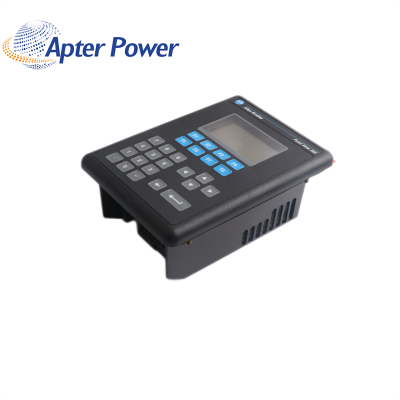

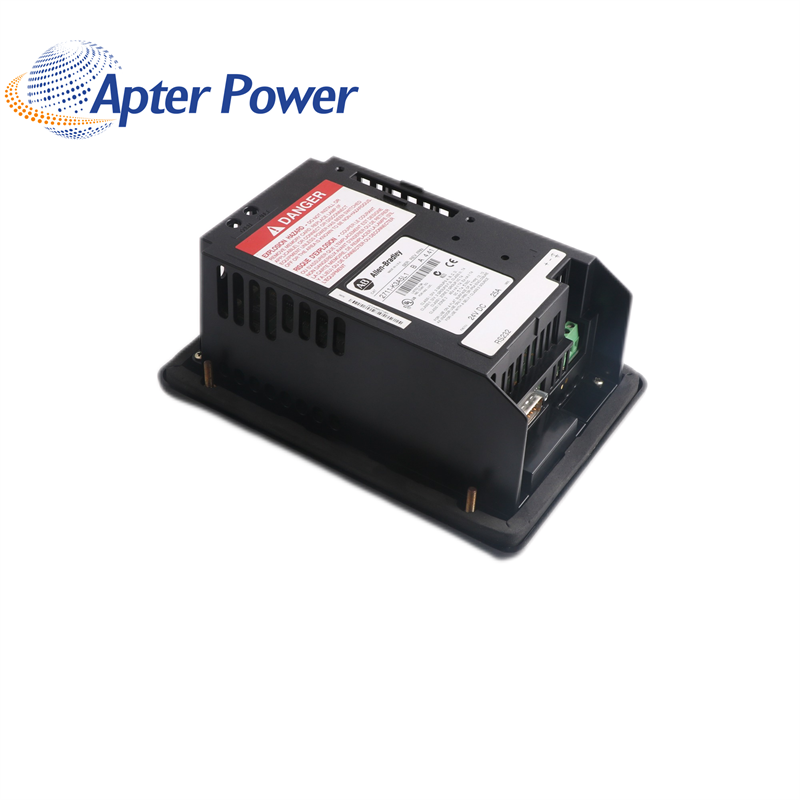

2711-K3A5L1 PanelView 300 Monochrome Keypad
Availability: More than 9 in stock
Product Origin:
USAWeight:
0.52KGDimension:
14cmx8cmx19.6cmCondition:
new and originalLead Time:
in stockCertificate:
coo/test report/warranty letter
Contact Us:
Technical Specifications for 2711-K3A5L1
|
Manufacturer |
Automation |
|
Condition |
100% New Original |
|
Brand |
|
Display Size |
3 in. |
|
|
Part Number/Catalog No. |
2711-K3A5L1 |
Memory |
240 KB |
|
|
Module Type |
Monochrome Keypad |
Input Voltage range |
18…32V DC |
|
|
Manufacture Year |
2021 |
Input Power |
24 VDC |
|
|
Product Package |
Original Package |
UPC |
10611320130888 |
|

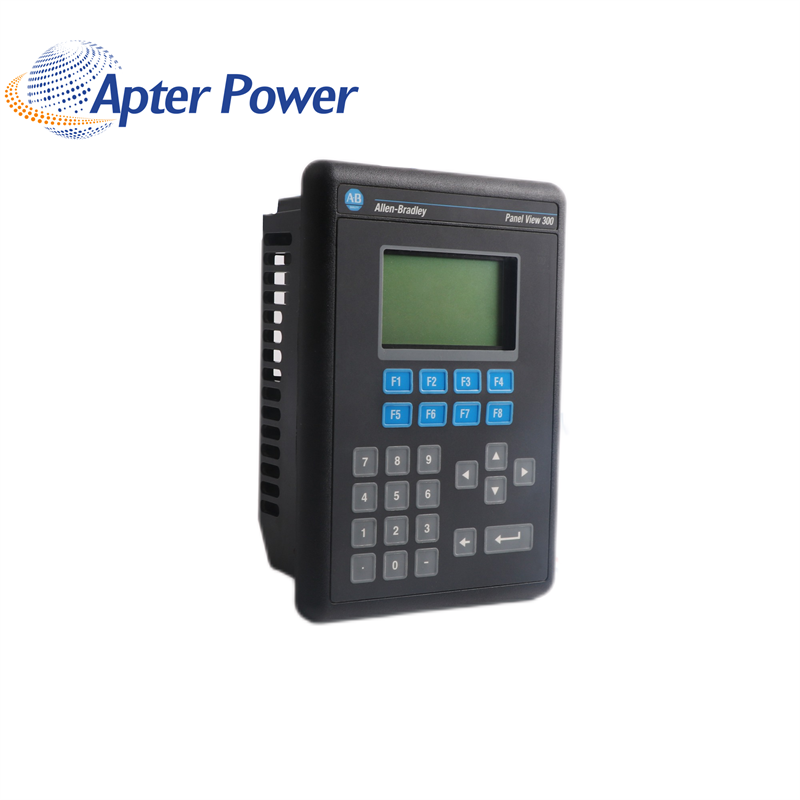

The 2711-K3A5L1 Panelview 300 is a product by that has a keypad operator input with eight function keys (F1 to F8) and a 3-inch LCD monochrome display with a LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, with a 100,000-hour, LED back-light standby life.
The 2711-K3A5L1 comes with an irreplaceable battery, an internal memory of 240 KB, and a runtime application memory of 170 KB. It accepts applications developed with PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports ATA Memory card. The input voltage range of the 2711-K3A5L1 is 18-32 Volts DC with 24 Volts DC nominal value and a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC).
The 2711-K3A5L1 is capable of communicating with Programmable Logic Controllers (PLC) such as PLC5, MicroLogix, SLC500 and Logix family of controllers. For storing application data, the 2711-K3A5L1 has an internal 240KB non-volatile memory along a 170KB runtime memory. The non-volatile memory may be expanded by installing an ATA memory card to accommodate larger files.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
What happens next?
 |
1. Email confirmation You will get an email confirming that we have received your enquiry. |
 |
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
 |
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |

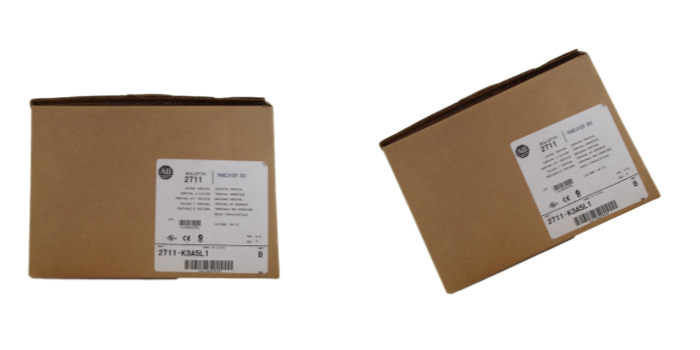

Original factory packing
Shipping packing process
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product,you can send it back to replace.
What happens next?
|
|
1. Email confirmation You will get an email confirming that we have received your enquiry. |
|
|
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
|
|
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Please click the link below to access the product manual.
uploadfile/downloads/2711-K3A5L1.pdf
