Weight:
0.34KGDimension:
3cmx16cmx14cmCondition:
new and originalLead Time:
in stockCertificate:
coo/test report/warranty letter
Technical Specifications for 1771-OBD
|
Manufacturer |
Automation |
|
Configuration |
Standard |
|
Brand |
|
Input Current |
1100 milliamps at 5.1 Volts DC |
|
|
Part Number/Catalog No. |
1771-OBD |
Thermal Dissipation |
9.6 BTU per hour |
|
|
Series |
ControlLogix |
Power Dissipation |
4.3 Watts |
|
|
Module Type |
Digital Output Module |
Slot width |
1 |
|
|
Maximum Nodes |
89 |
Weight |
0.57 pounds (0.26 kilograms) |
|
|
Maximum Connections |
131 |
UPC |
106624682912712 |
|

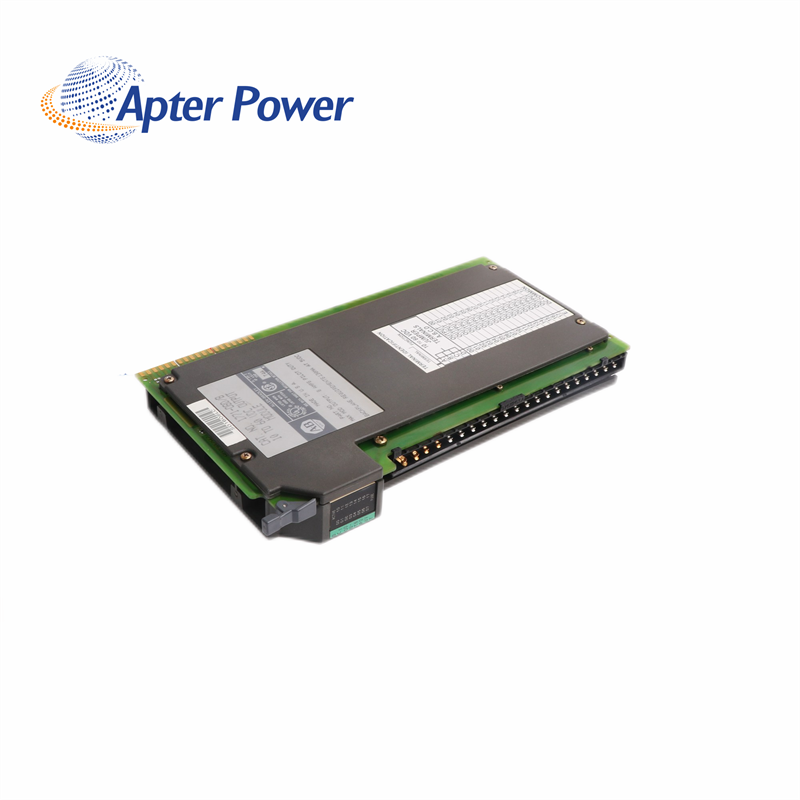

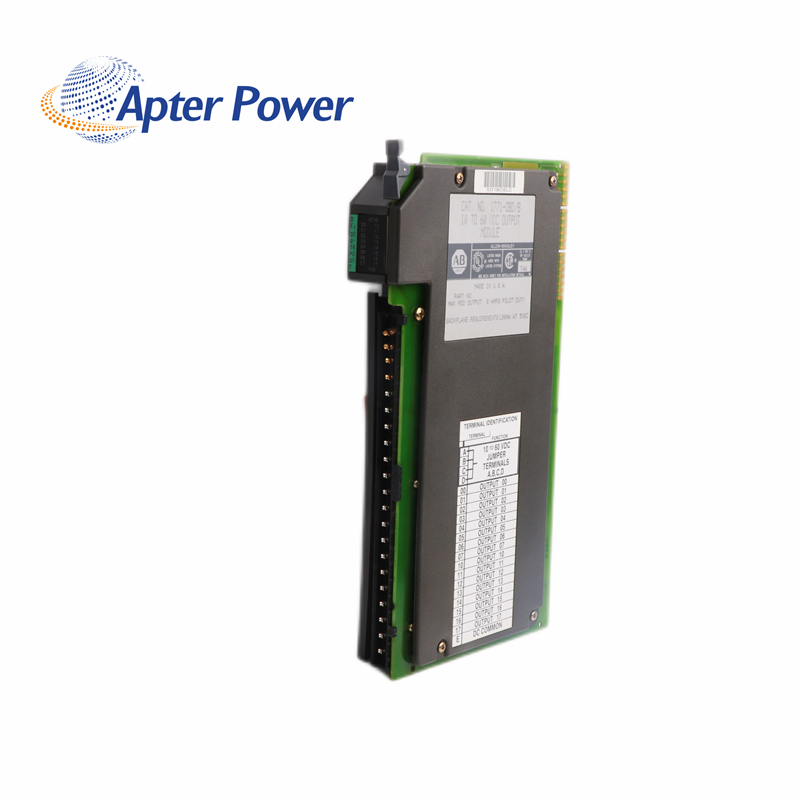

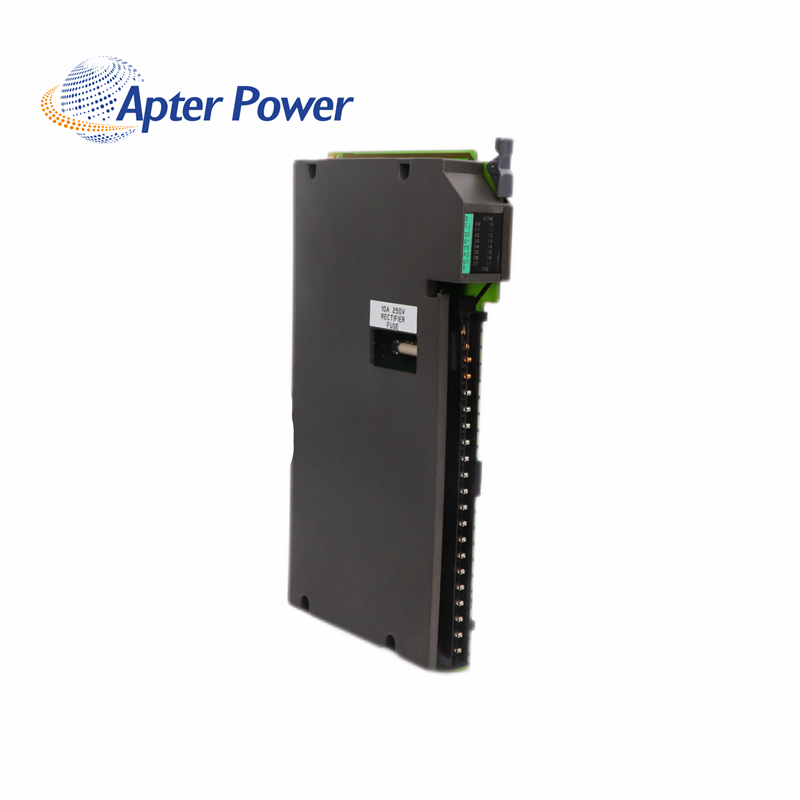

The 1771-OBD is a Sixteen (16) channel, non-isolated output module that is part of the 1771 Product bulletin. This module is especially compatible for use with the PLC5 product family, typically used for energizing DC powered electrical loads such as pilot lamps, relay coils, solenoid actuated devices and other devices. It has an output voltage range of 10-60 VDC with nominal voltage output of 48 VDC.
The 1771-OBD’s output channels are rated 2 A, resistive, not-exceeding 8 A per module and 0.2 A per pilot duty output. Each channel has minimum Surge current rating of 4 A per output for 10 ms, repeatable every 2 s and maximum of 25 A per output for 10 ms, repeatable every 2 s while the module’s minimum load current is 2.5 mA.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
What happens next?
 |
1. Email confirmation You will get an email confirming that we have received your enquiry. |
 |
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
 |
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Original factory packing
Shipping packing process
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
What happens next?
|
|
1. Email confirmation You will get an email confirming that we have received your enquiry. |
|
|
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
|
|
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Please click the link below to access the product manual.
uploadfile/downloads/1771-OBD%20%EF%BC%881%EF%BC%89.pdf
