1769-OF4CI Analog Current Isolated

Manufacturer

Automation

Condition

100% New Original

Brand

Solid Wire Size

22 to 14 AWG

Part Number/Catalog No.

1769-OF4CI

Conversion rate

110 ms

Module Type

Analog Output Module

Isolation Voltage

50 Volts

Manufacture Year

2021

Stranded Wire Size

22 to 16 AWG

Product Package

Original Package

UPC

10781180908658

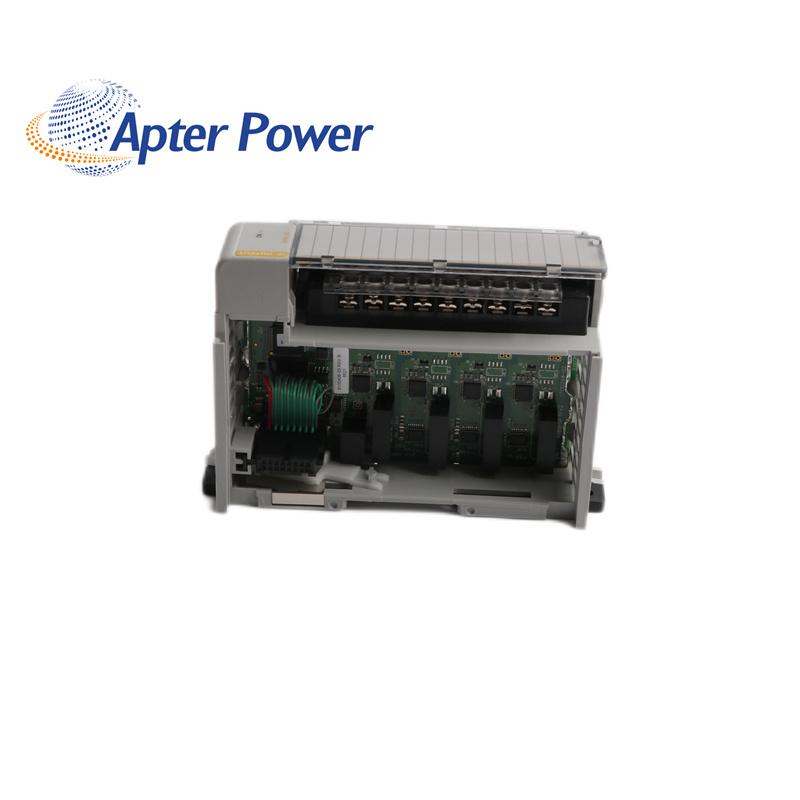

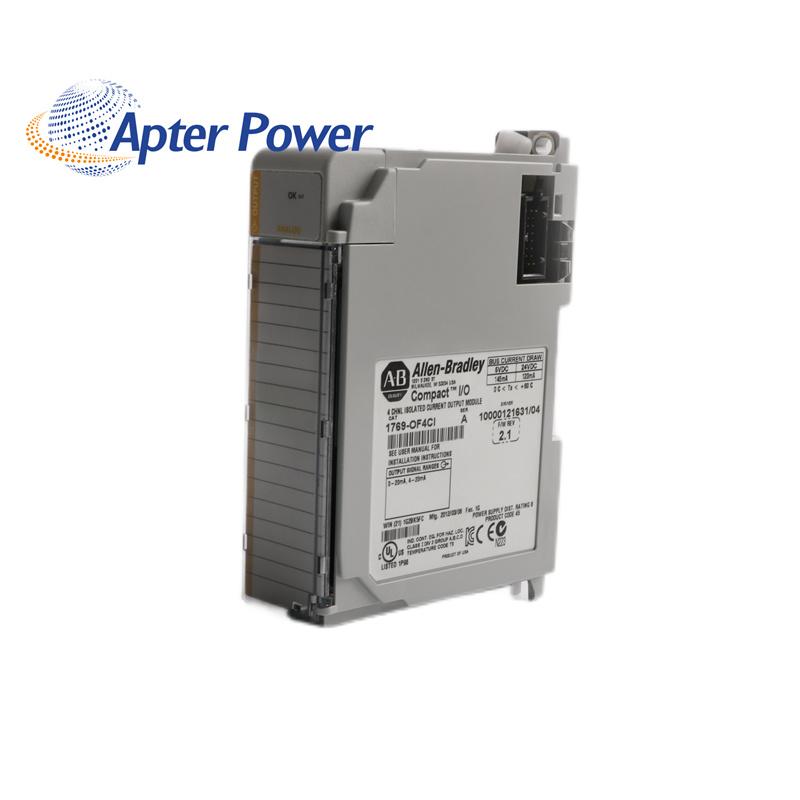

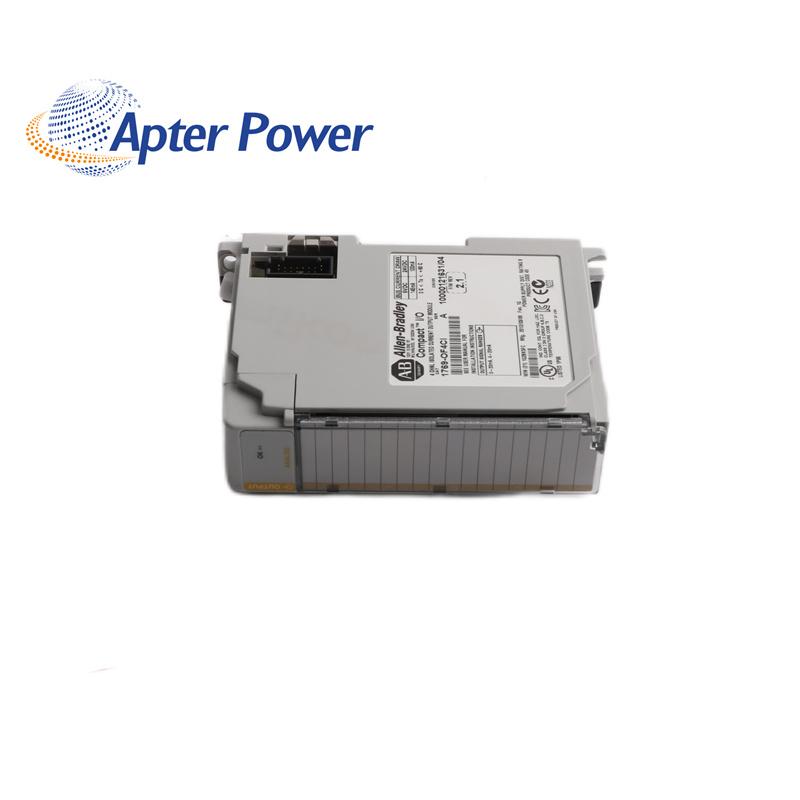

The 1769-OF4CI is a Four (4) channel analog current isolated output module classified under the CompactLogix series manufactured by . The 1769-OF4CI features 16-bit resolution and supports the Belden 8761 shielded compact analog module cable.

The 1769-OF4CI features 330 µ V per bit 0 to 20mA with a 5 Volt DC 165 mA bus current. This unit also features a heat dissipation of 2.0 Watts. It features a conversion rate of 110 milliseconds and a limited voltage per current ratio that is greater than 2.9 milliseconds. The module comes with a resistive load of 0 to 500 Ohms and has an output inductive load rated at 0.1 mH.

The 1769-OF4CI comes with electrostatic discharge that can damage integrated circuits or semiconductors. Therefore, when touching the unit, touch a grounded object so as to discharge the static potential. Avoid touching the bus connector or the connector pins and use a static-safe workstation if available. While not in use, the 1769-OF4CI should be kept in the static shield box.The 1769-OF4CI comes with an accuracy of +/-0.35% with an accuracy drift with respect to the temperature of +/-0.0058% FS per degree Celsius.
