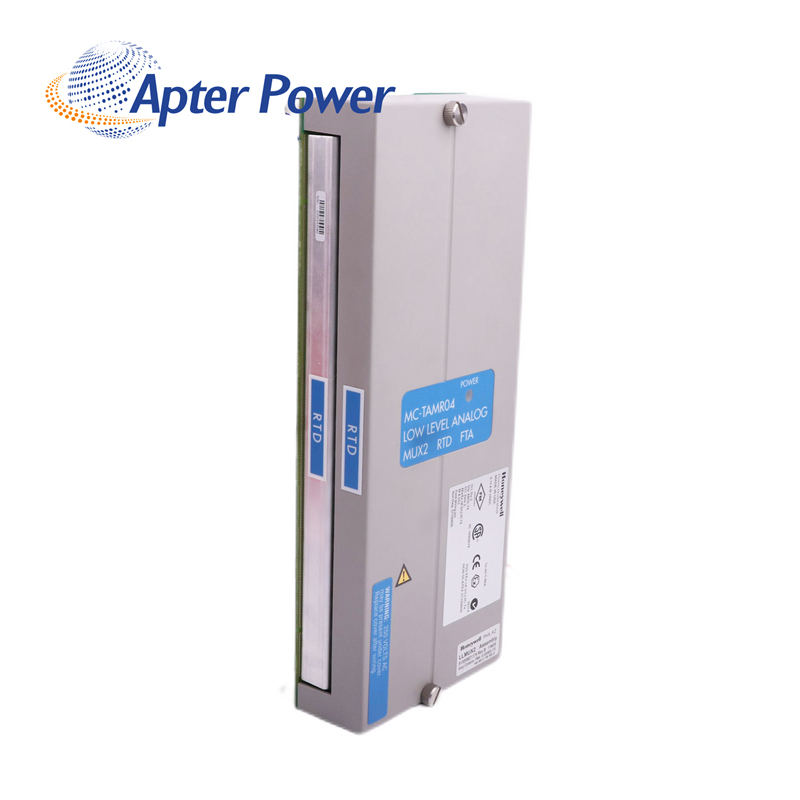

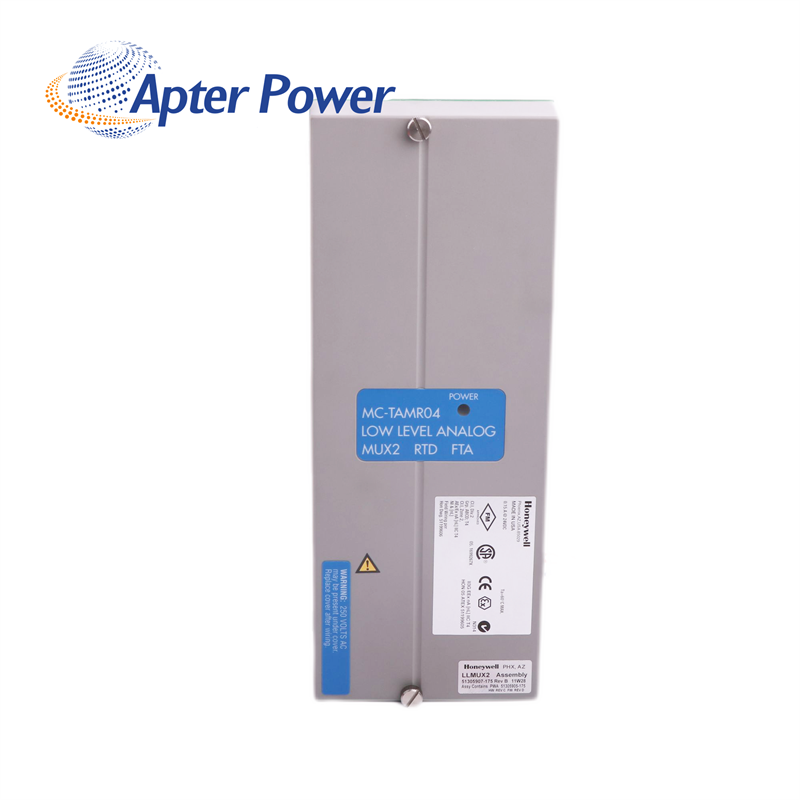

Honeywell MC-TAMR04 51305907-175 Analog Input Multiplexer

Manufacturer

Honeywell

Condition

100% New Original

Brand

Honeywell

Channel bandwidth

0 to 4.7 Hz (-3 dB)

Part Number

MC-TAMR04

No of chnls

64

Product Name

Terminal board

Long term drift

500 ppm

Manufacture Year

2021

Input impedance

1 megohm at dc

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The MC-TAMR04 51305907-175 is a UCN Low Level Analog Input Multiplexer.The LLMUX IOP module supports up to 64 channels of temperature inputs. Low level inputs use the Honeywell PMIO LLMUX FTA. Each FTA supports 16 channels. Two types of LLMUX FTA are supported. One provides 16 RTD inputs. The other provides 16 TC or MV inputs. Any combination of FTAs may be used to provide the mix of TC, mV or RTD points required.

The Temperature Input LLMUX supports the existing solid state PMIO LLMUX FTA. The PMIO LLMUX FTA supports RTD and Thermocouple (TC) inputs. The Temperature variable is collected from all points at a 1 second rate. The 1 second update includes a configurable check for Open Thermocouple Detection (OTD) (see below) before propagation of the temperature variable.

• TC and RTD operation

• Remote cold junction capability

• 1 Second PV scanning with OTD protection

• Configurable OTD protection (See below)

• Temperature points can be added in 16 point increments
