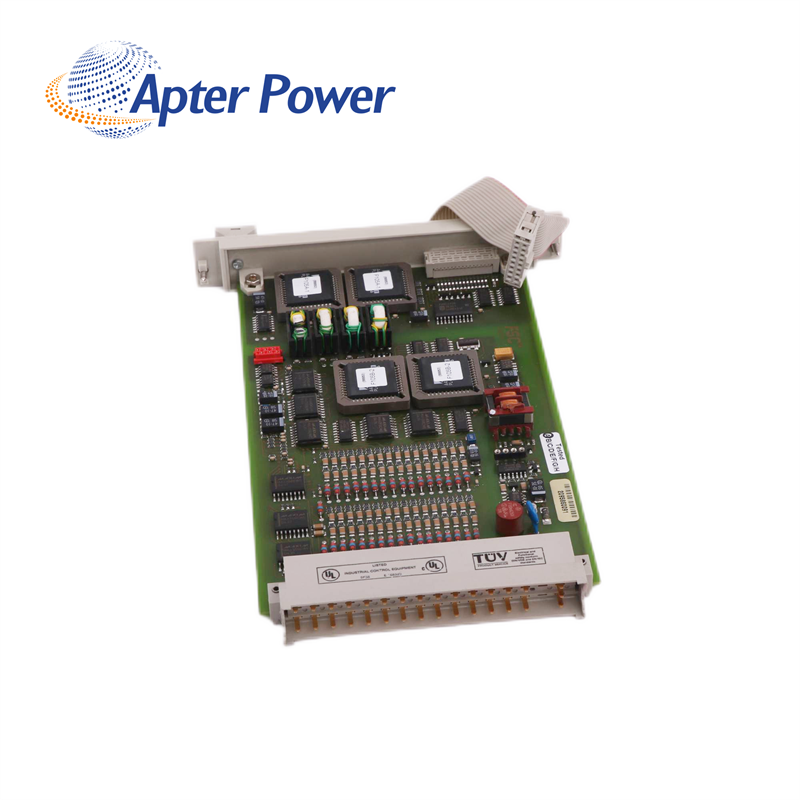

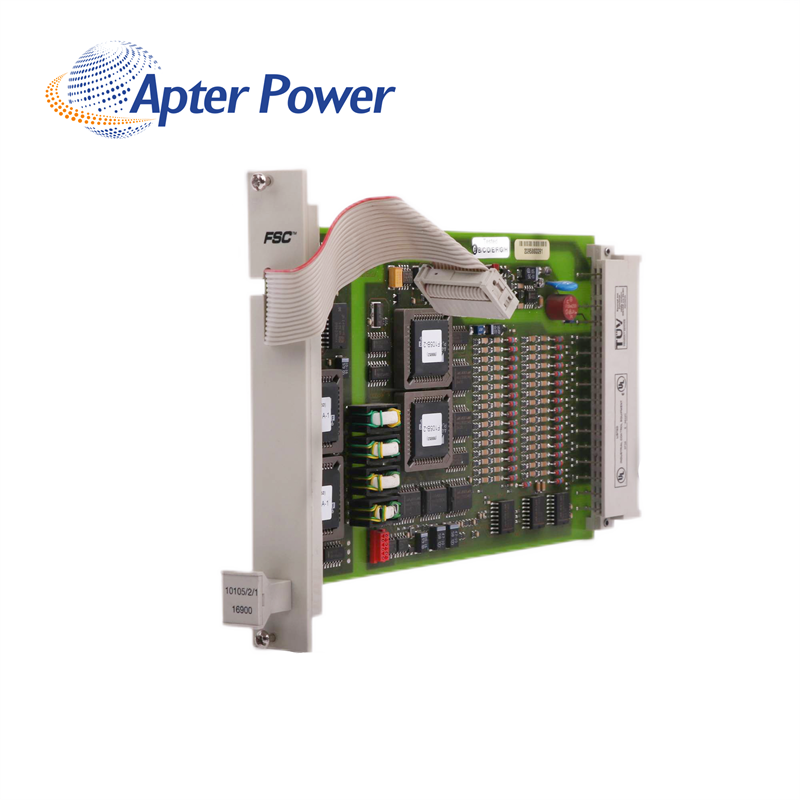

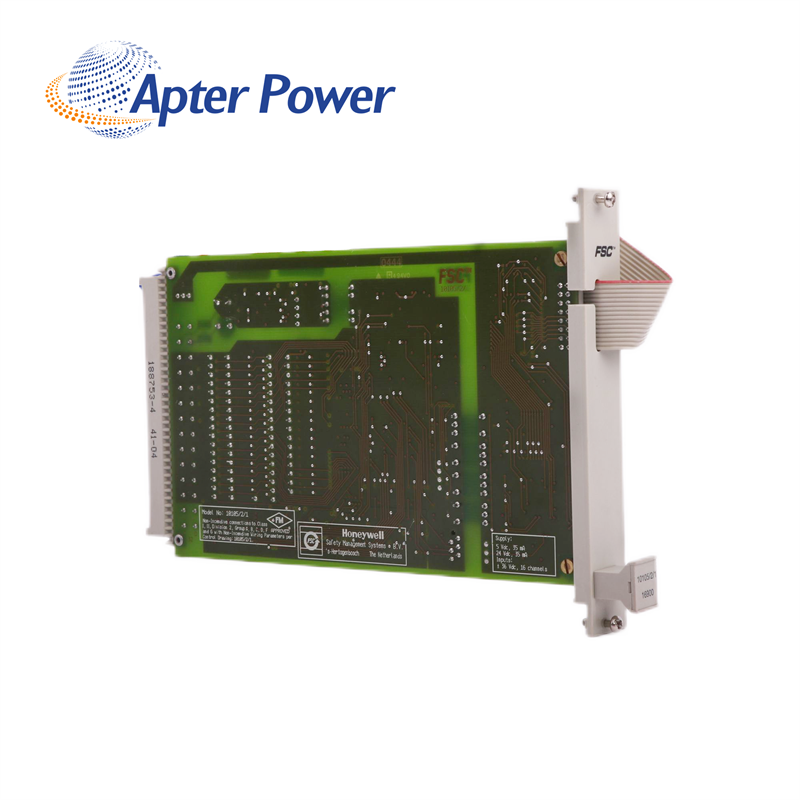

Honeywell 10105/2/1 Analog Input Module

Manufacturer

Honeywell

Condition

100% New Original

Brand

Honeywell

A/D converter

12-bit

Part Number

10105/2/1

Power requirements

5 Vdc 35 mA

Product Name

Analog Input Module

Input range

0 to 4.1 V

Manufacture Year

2021

Software versions

≥ 500

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The analog input module 10105/2/1 has sixteen analog inputs (0-4 V) and an external voltage readback input (0-4 V). The sixteen channels are fail-safe (safety class AK5) and have an isolated analog 0 V common to all sixteen channels.

Analog input signals such as thermocouple, PT-100, etc. can only be used after conversion to 0(4)-20 mA using a dedicated converter (and an FTA-T-14 or 10105/A/1 module).

The analog inputs of the 10105/2/1 module require the field signals to be converted from 0-20 mA to a level that can be used by the 10105/2/1 module. This conversion can be established in two ways:

• on the field termination assembly module FTA-T-14, or

• using the analog input conversion module 10105/A/1, which is placed on a programming connector (Px) on the back of the I/O backplane in the 19-inch rack.
