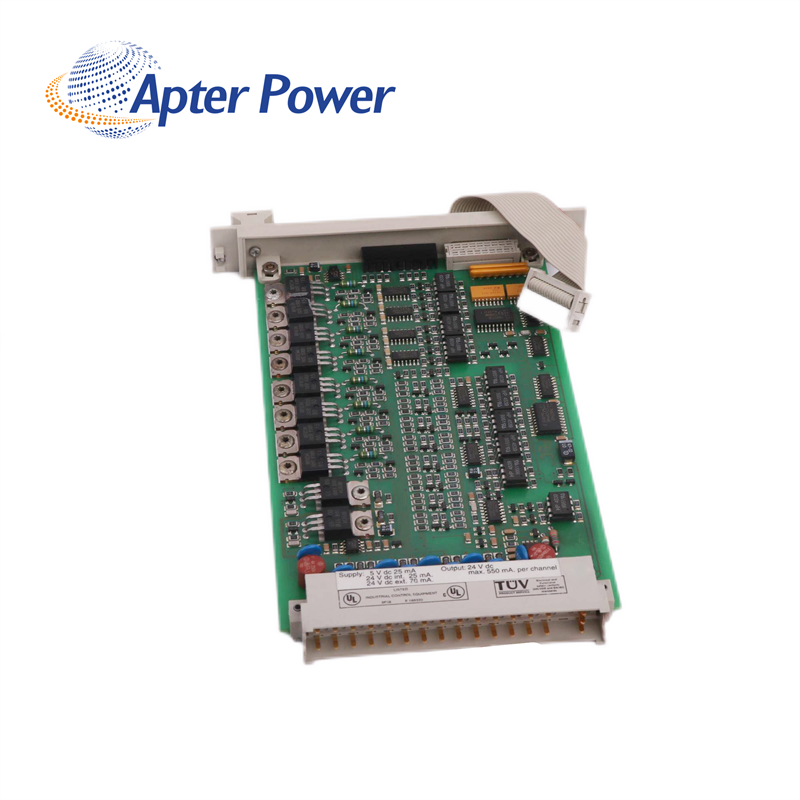

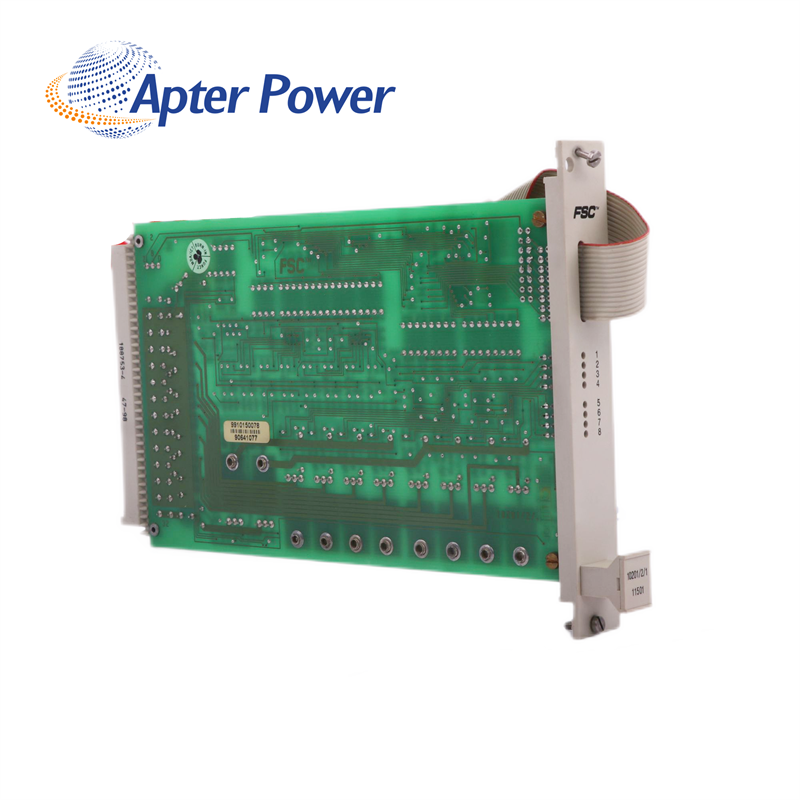

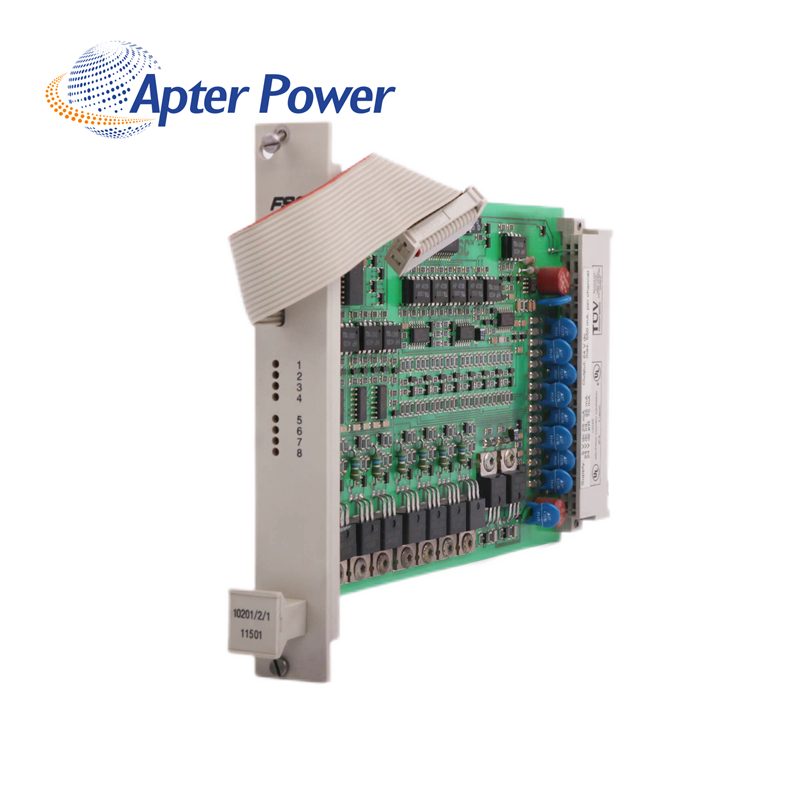

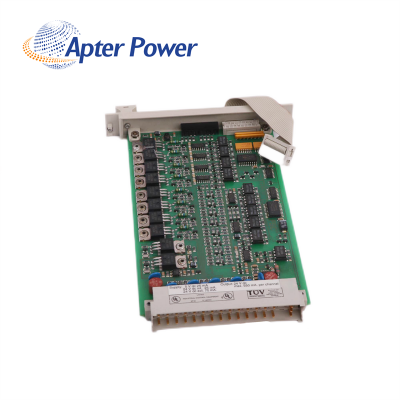

Honeywell 10201/2/1 Digital Output Module

Manufacturer

Honeywell

Condition

100% New Original

Brand

Honeywell

Off current

< 0.1 mA

Part Number

10201/2/1

WDG input current

  8 mA

Product Name

Digital Output Module

Software versions

≥ 3.00

Manufacture Year

2021

Maximum current

550 mA

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The fail-safe digital output module 10201/2/1 has eight 24 Vdc, 550 mA output channels to drive loads up to 13 W. These loads may be resistive (e.g. lamps) or inductive (e.g. solenoids). For inductive loads, a suppression diode is included on each output. The outputs, including the suppression diodes, are fully tested and may therefore be used for fail-safe applications.

The outputs are split into two groups of four outputs each. Each group has its own secondary means of de-energization. This increases the shutdown selectivity in case of a channel failure. The secondary means of de-energization enables the watchdog and/or the processor to de-energize the outputs, irrespective of the result of the application function.

Within the configured process safety time, the outputs are tested for:

• ability to de-energize,

• ability to de-energize the group (via secondary means),

• crosstalk between outputs, and

• functioning of the suppression diodes.
