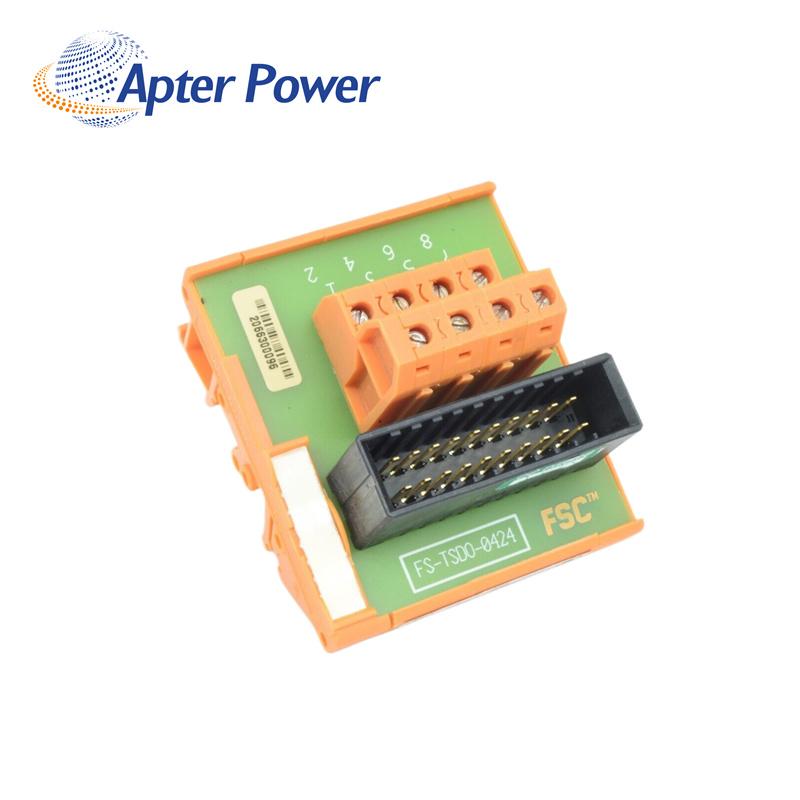

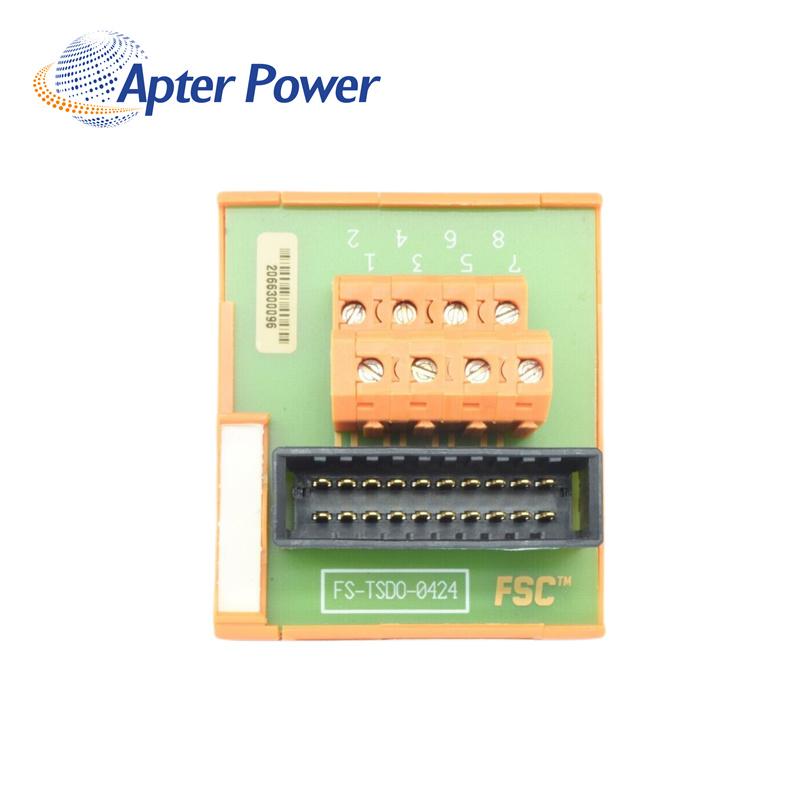

Honeywell FC-TSDO-0824 Digital Output Module

Manufacturer

Honeywell

Condition

100% New Original

Brand

Honeywell

Input current

≤ 15mA

Part Number

FC-TSDO-0824

Input resistance

260 Ω ±25%

Product Name

Digital Output Module

Output voltage

24 Vdc

Manufacture Year

2022

Accuracy

0.15%

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The FC-TSDO-0824 module is a Safe digital input FTA.Field termination assembly module TSDI-1624 is the interface between system interconnection cable SICC-0001/Lx and the external field wiring (screw terminals). The SICC cable interconnects the SIC connector on the FTA module and a (redundant pair of) SDI-1624 modules.The TSDI-1624 module can interface with digital input signals from ‘Class I, Division 2 Hazardous Locations’.

The FC-TSDO-0824 module can handle short circuits to 0 Volt of (INx+ or INx) field wires because the PTC (Positive Temperature Coefficient) resistor between the +24Vout of the SDI-1624 modules and the ‘+24Vout’ connection (INx+) of each input channel limits the current. This prevents the loss of all 16 channels (+24Vout fails) in the case of a single short circuit to 0 Volt of a connected field wire.The FTA module has a universal snap-in provision for standard DIN EN rails and screw terminals for connecting field wiring.
