General Electric 531X135PRGAAM3 Programmer Board

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Rated Voltage

120 VAC

Part Number

531X135PRGAAM3

Input Voltage Range

0-230 VAC

Product Name

Programmer Board

Input Current

7.2 mA per point

Manufacture Year

2021

Input Impedance

7.6K typical

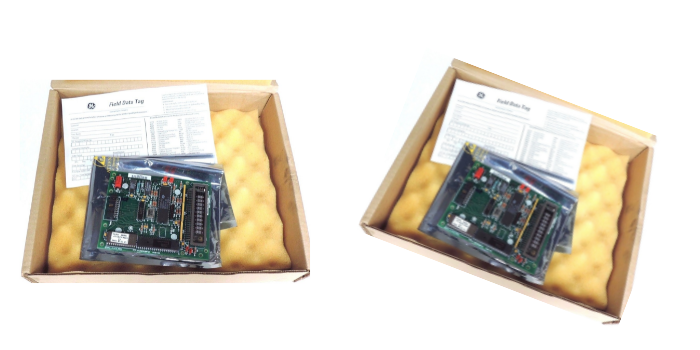

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

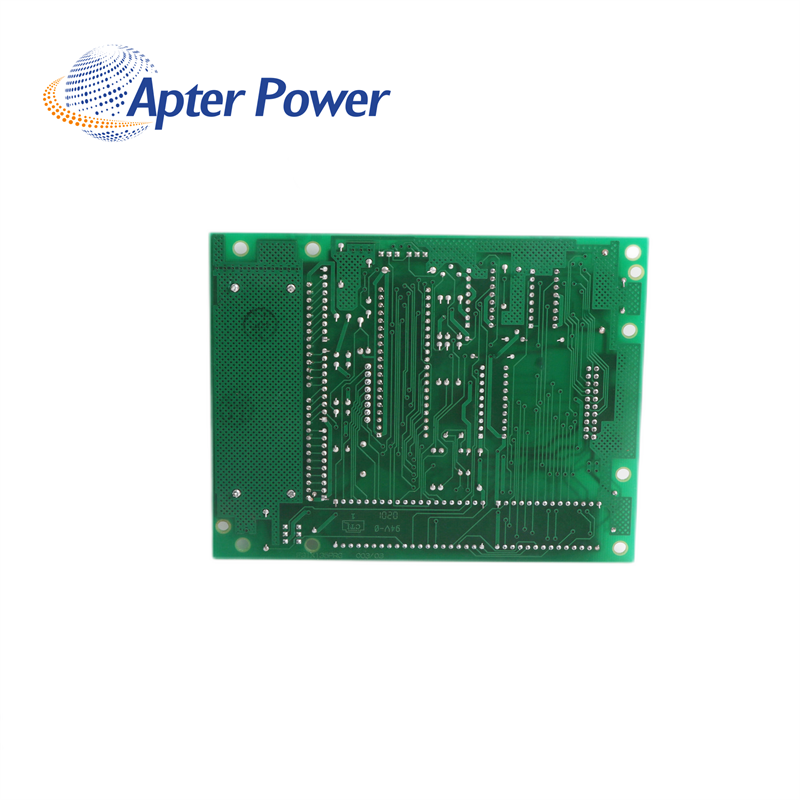

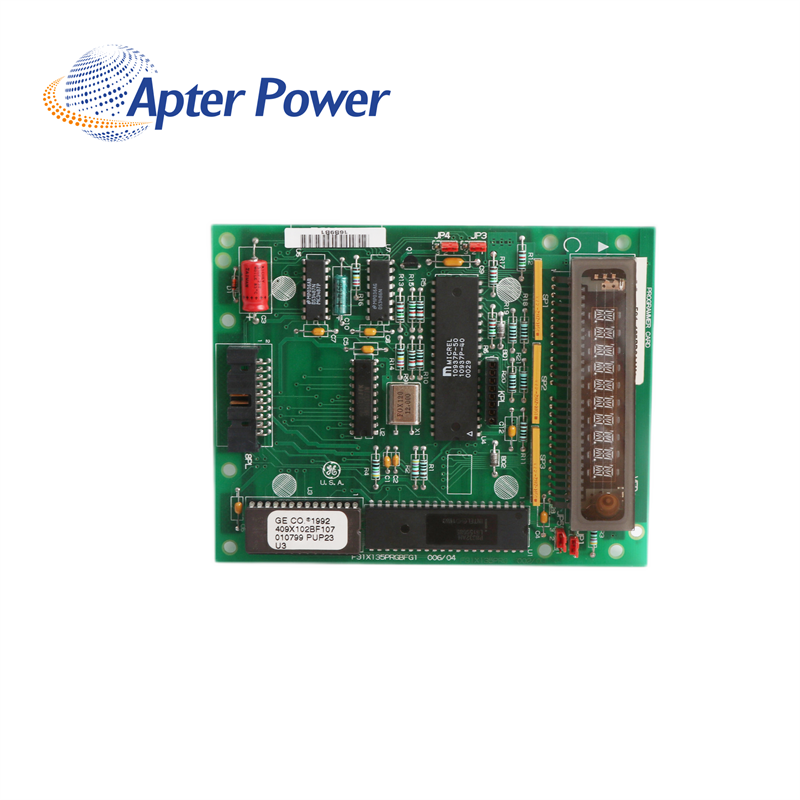

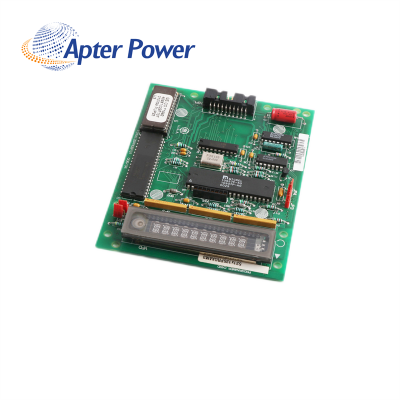

The 531X135PRGAAM3 is a Programmer Board. The 531X135PRGAAM3 has six Integrated Circuits that hold all the programs for the circuit board to function. The Integrated Circuits are split into two groups called EPROM and EEPROM. Both groups hold the programming data the only difference is the EPROM can be programmed with new data when it becomes available while the EEPROM cannot.

The 531X135PRGAAM3 has thirteen capacitors. The Capacitors are used to store an electric charge, consisting of one or more pairs of conductors separated by an insulator. The 531X135PRGAAM3 has four sets of Jumper Ports. These Jumper Ports come with plastic covers that allow the worker to move them around the circuit board to control the flow of energy.

The 531X135PRGAAM3 has eighteen various colored resistors with banding marks. The resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. In electronic circuits, resistors are used in a multitude of ways such as reducing current flow, adjusting signal levels, dividing voltages, bias active elements, and terminating transmission lines, among other uses. The colored bands correspond with a color in the code that gives it a numerical value.
