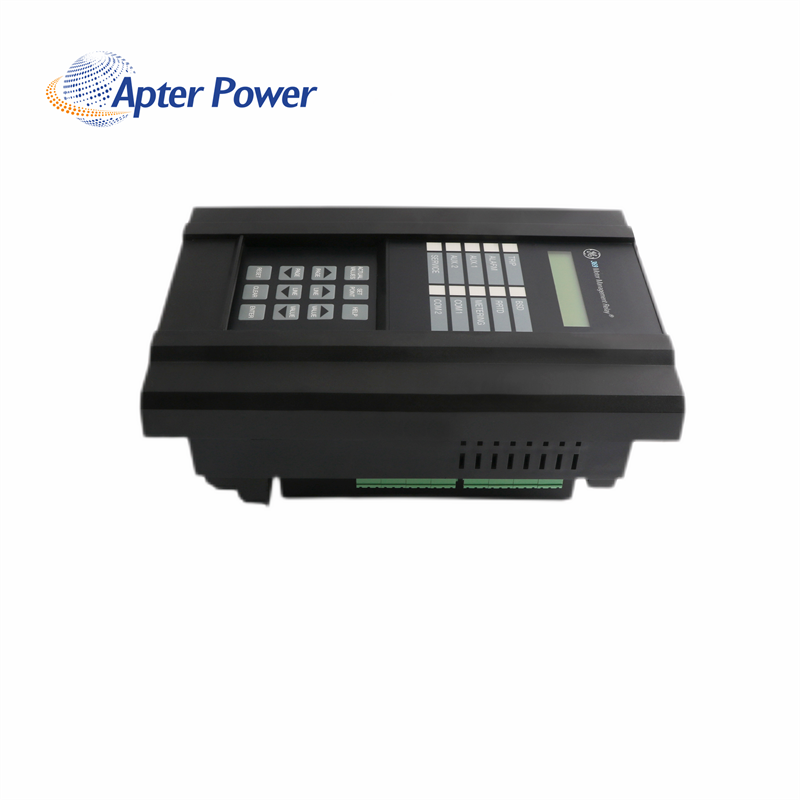

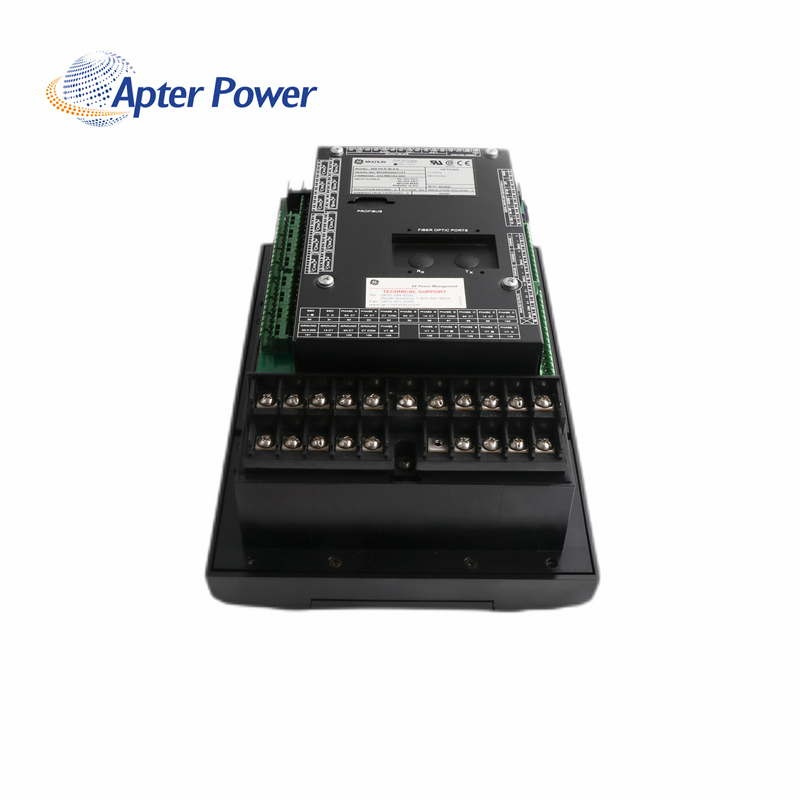

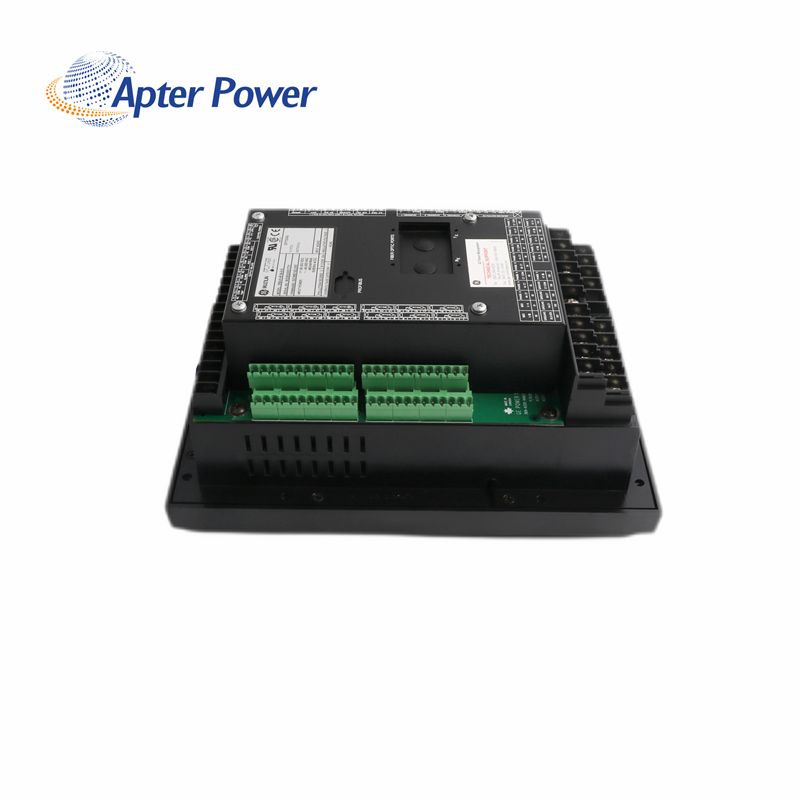

General Electric 369-HI-R-M-0-0 MOTOR PROTECTION RELAY

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Lead Time

3- 7 days

Part Number

369-HI-R-M-0-0

Dropout Level

102 to 104% of pickup

Product Name

MOTOR PROTECTION RELAY

Time Delay

<200 ms

Manufacture Year

2021

Level Accuracy

±0.02 Hz

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The 369-HI-R-M-0-0 is a motor management digital relay of the 369 Multilin series. Specifically this series is made to monitor and provide protection for three phase motors and the mechanical systems of the motors. The 369-HI-R-M-0-0 is designed to measure the cooling rate of the motor in addition to the time needed to accelerate to full function and the motor inrush current value. These three measurements are then used to provide protection for these three phase motors.

The 369-HI-R-M-0-0 can tailor itself to an individual motor by using a custom feature called the FlexCurve (TM) overload curve. If this option is not selected to generate a flexible custom curve based an imputed value by the operator then the user has the ability to select from up to fifteen unique curves to best fit the motor in need.
