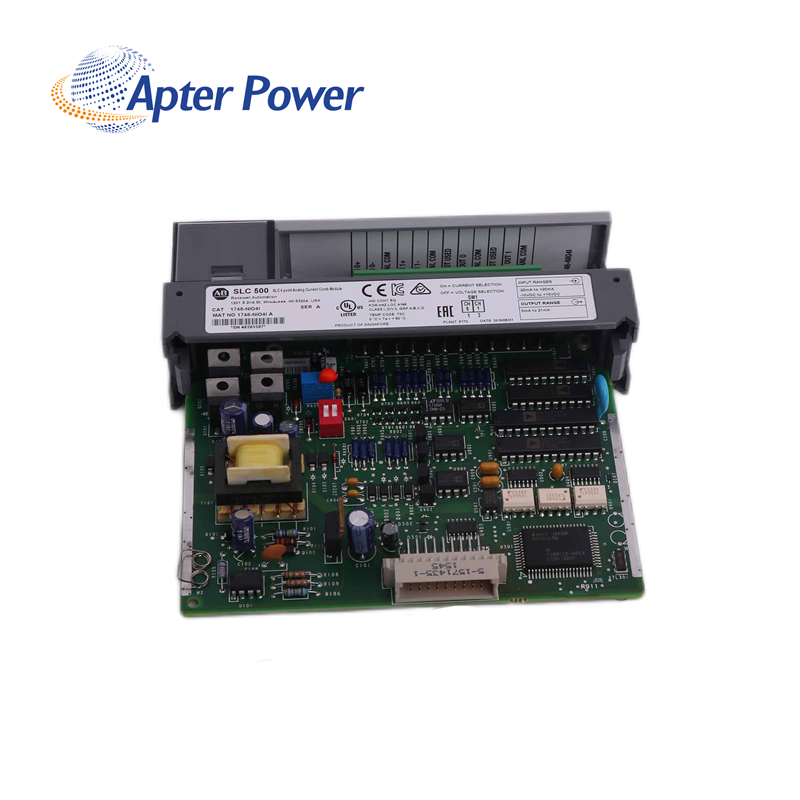

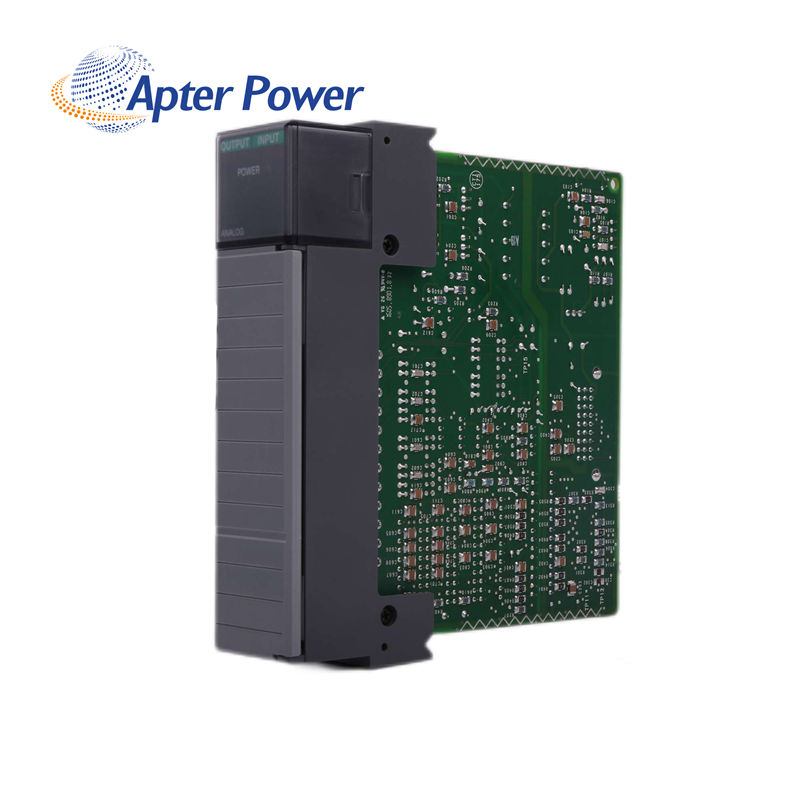

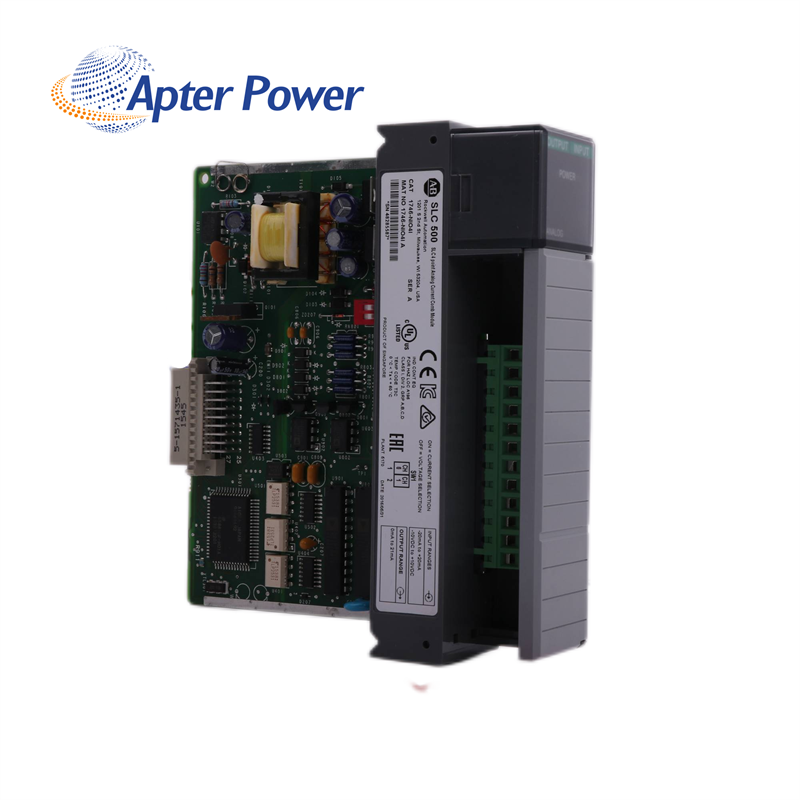

1746-NIO4I SLC 4 point Analog Current Comb Module

Manufacturer

Automation

Condition

100% New Original

Brand

Output Voltage Range

10 to +10V dc - 1 LSB

Part Number/Catalog No.

1746-NIO4I

Inputs

2

Module Type

Analog Current Comb Module

Resolution

16 bits in, 14 bits out

Manufacture Year

2021

Tested Voltage Isolation

500 Volts

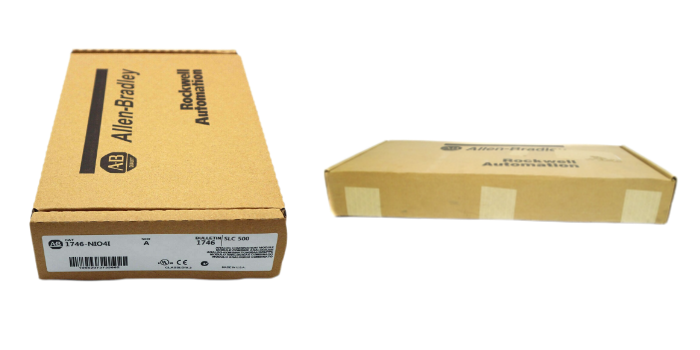

Product Package

Original Package

Update Time

512 microseconds

The 1746-NIO4I also has a voltage input rating of -10 to 10 Volts DC and a 760 KOhms voltage impedance at a resolution of 305 microVolts per Least Significant Bit (LSB). It also has an accuracy of +/- 0.504%, and a drift accuracy and error of +/- 63 ppm/degree Celsius and +/- 57 ppm/degree Celsius. The 1746-NIO4I offers overvoltage at either 220 Volts AC (RMS) or 220 Volts DC (continuous). The current outputs have a load range of 0 to 500mA with its normal range at 0-20 mA and a 5% over-range capability at 2.56348 microA per LSB signal resolution.

 The 1746-NIO4I also has an overall accuracy of ±0.541% with a drift accuracy of ±70 ppm/degree Celsius and a gain and offset error of ±0.516% and +/-12 LSB. The entire module has a 500 Volt-tested isolation between fields in the wiring-to-backplane isolation and it has an aggregate update time of 512 microSeconds for all channels. The 1746-NIO4I’s operational temperature ranges between 0 and 60 degrees Celsius at a 5 to 95% non-condensing relative humidity.

The 1746-NIO4I is an analog combination module that features Two (2) Voltage or Current differential, non-isolated input channels and Two (2) Voltage output channels. This module is a single slot module which combines the input and output capabilities.
