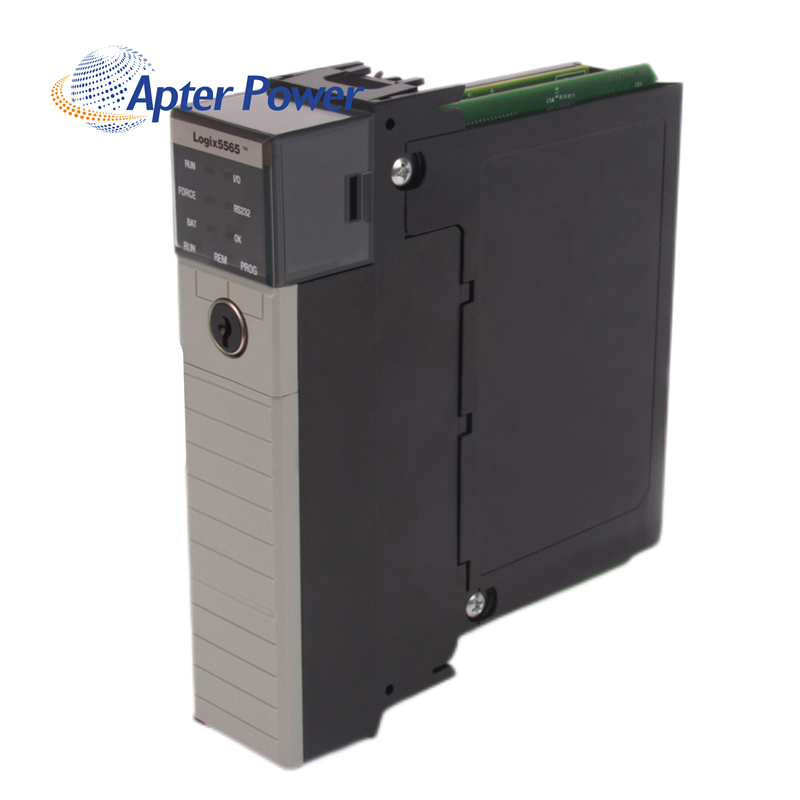

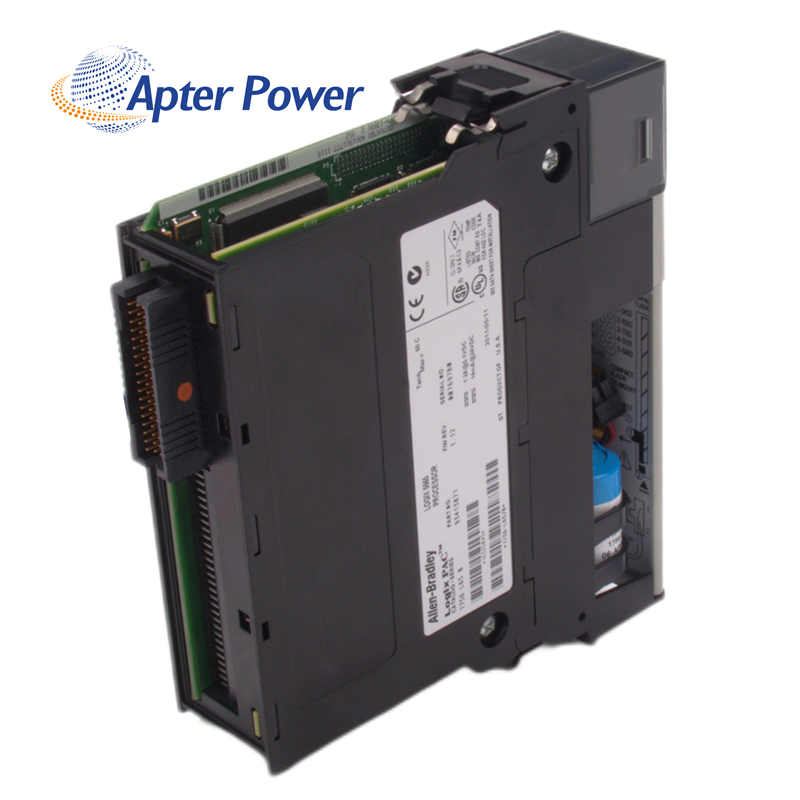

1756-L65 ControlLogix Logix5565 Processor

Manufacturer

Automation

Condition

100% New Original

Brand

I-O Memory

478 Kilobytes

Part Number/Catalog No.

1756-L65

User Memory

32 MB

Module Type

ControlLogix Logix5565

Power Dissipation

3.5 Watts

Manufacture Year

2021

Current Draw (5.1 Volts DC)

1200 milliamps

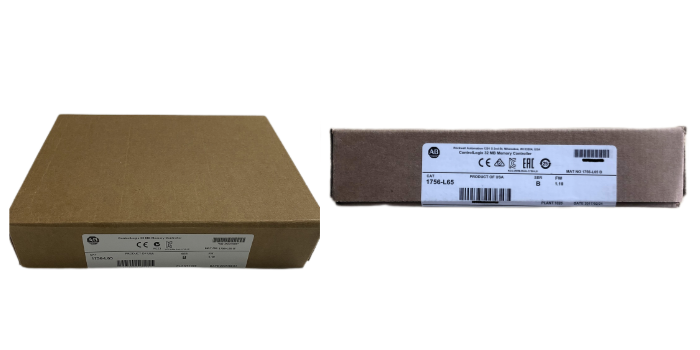

Product Package

Original Package

Thermal Dissipation

11.9 BTU per hour

The 1756-L65 controller has an operating temperature that ranges from 0 to 60 Degrees Celsius, as well as a storage temperature ranging from -40 to 85 Degrees Celsius. It also has a maximum surrounding air temperature of 60 Degrees Celsius and a noncondensing relative humidity range of 5% to 95%. The controller has a vibration of 2 g at 10 to 500 Hz, an operating shock of 30 g, and a non-operating shock of 50 g.

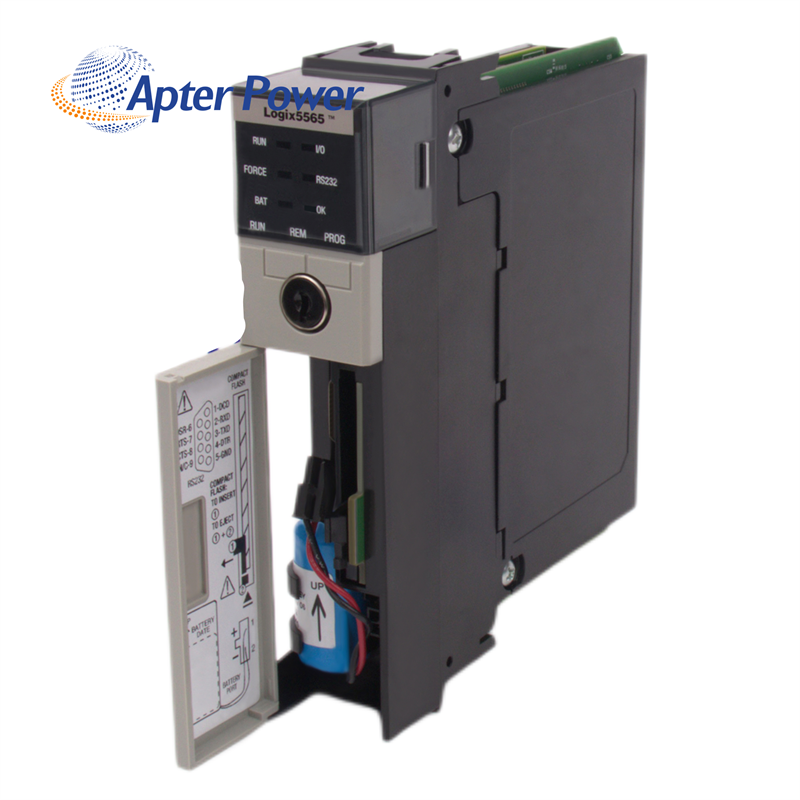

The 1756-L65 is a Series B ControlLogix controller. It has a built-in RS-232 serial port available, as well as a user memory for data and logic of 32 MB and an I/O memory of 478 kb. You can also install an optional nonvolatile memory storage with this controller. However, what can be installed is only the 128 MB CompactFlash 1756-CF128 memory card. It also has a battery that can be replaced but only when needed.

It has a maximum analog I/O of 4000 and a maximum digital I/O, as well as a maximum total I/O, of 128,000. It has a current draw of 1200 mA at 5.1V DC and 14 mA at 24V DC. Its power dissipation is 3.5 W and thermal dissipation is at 11.9 BTU/hr. It also has a continuous isolation voltage of 30V.
