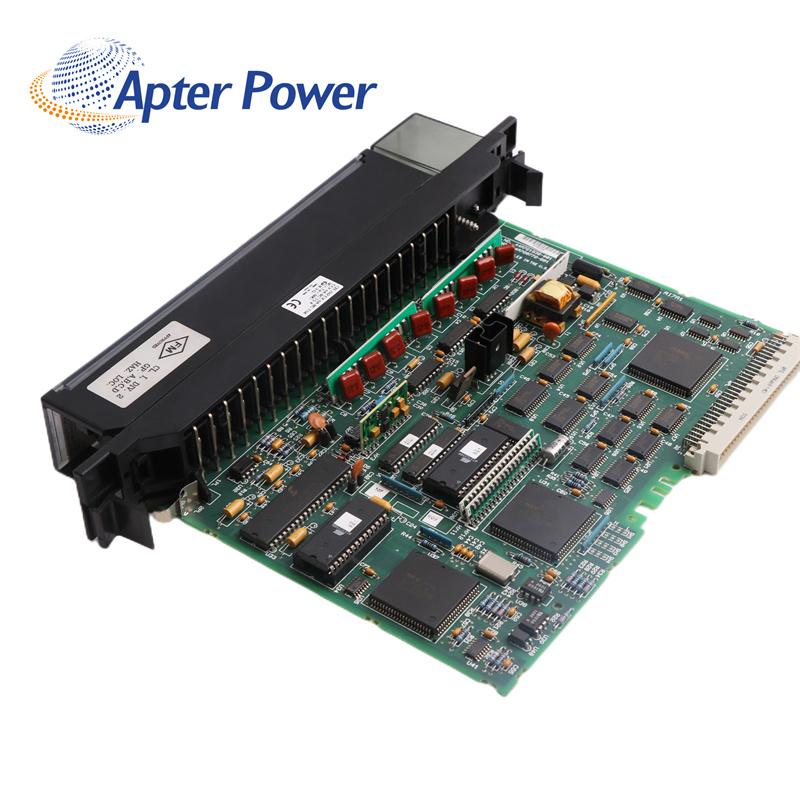

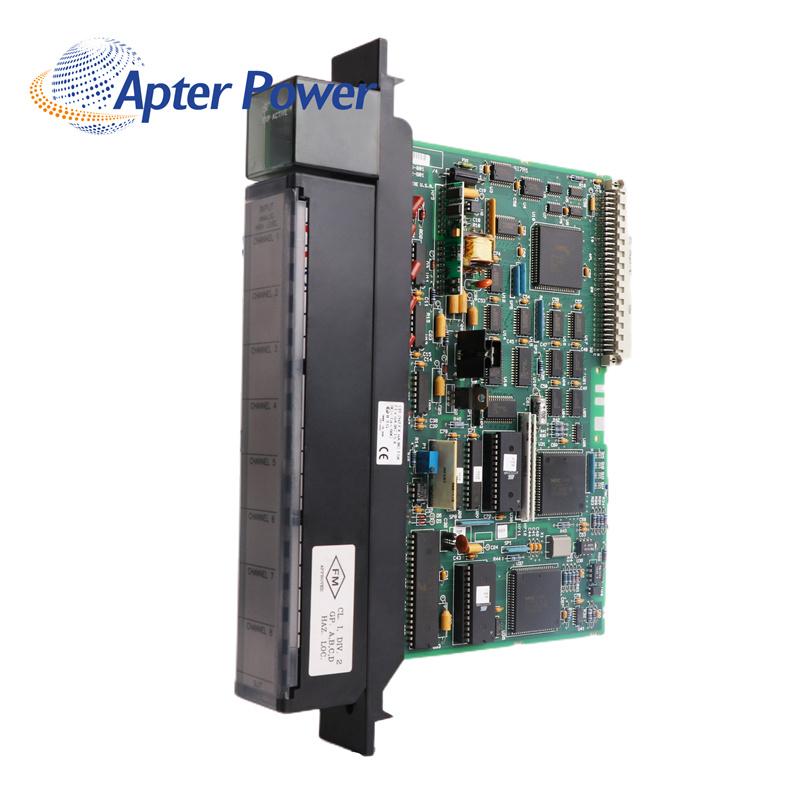

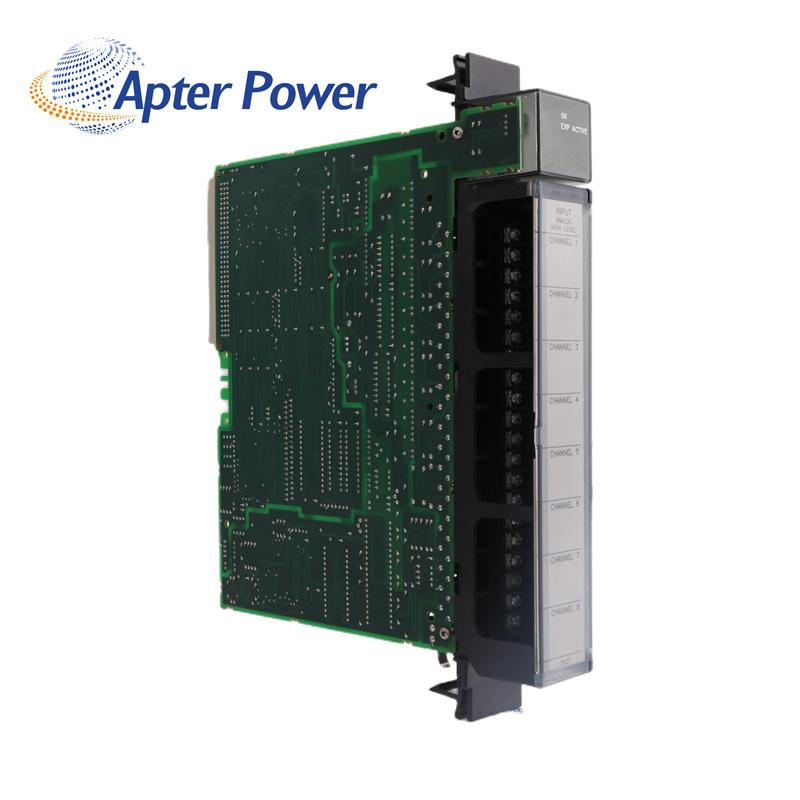

General Electric IC697ALG230 Analog Input Module

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Input Power

70 Watts

Part Number

IC697ALG230

Operating temperature

0 to 60°C

Product Name

Analog Input Module

Power requirements

+240 VDC

Manufacture Year

2021

Input Current

150 mA

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The IC697ALG230 is a Analog Input Module.Complete Analog subsystem includes Base Converter and Expander modules. Base Converter module has eight differential inputs individually configurable for voltage or current. Accepts unipolar or bipolar Analog Inputs up to " 10 volts full scale. Accepts 4 to 20 milliamp current loop signals. Individual user scaling on each input channel on Base Converter module; scaling on a per module basis for Expander modules.

The High Level Analog Input subsystem for the Programmable Logic Controller (PLC) accepts analog inputs of up to Ç 10 volts full scale, or 4 to 20 milliamp current loop signals. These inputs are converted to digital form for use by the CPU or other controllers accessing analog inputs via the VME backplane.The basic converter is 14 bits resolution (1 part in 16384); an oversampling and averaging technique further enhances this resolution. Inputs are protected against transient and steady-state overvoltage conditions.
