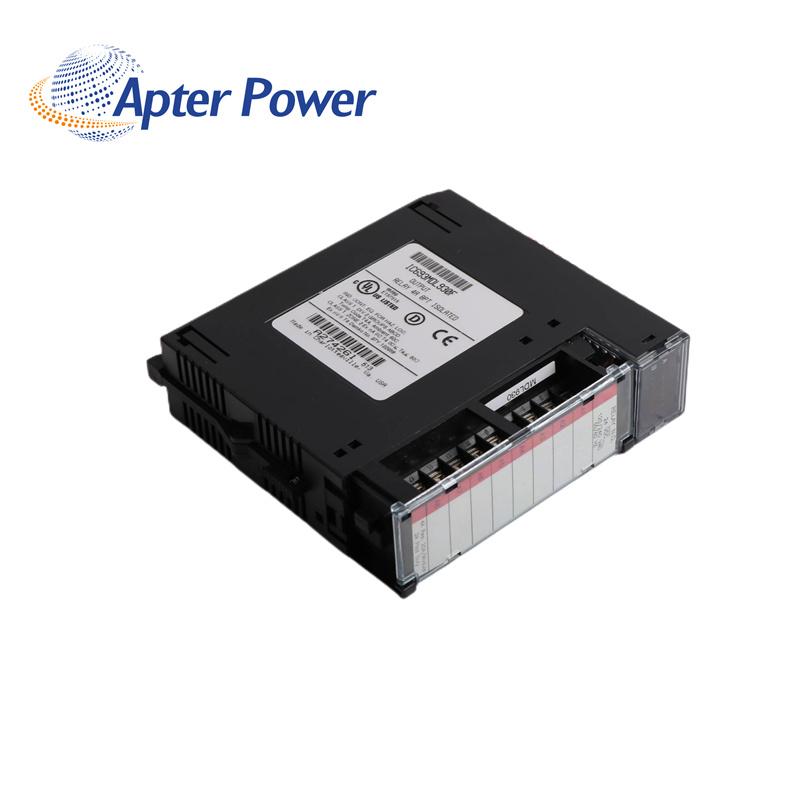

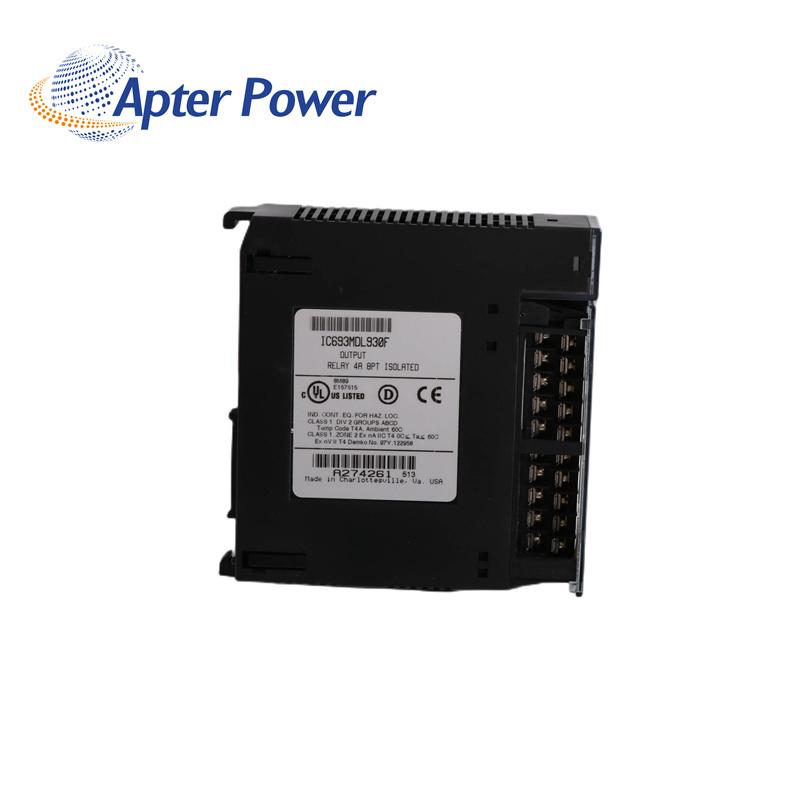

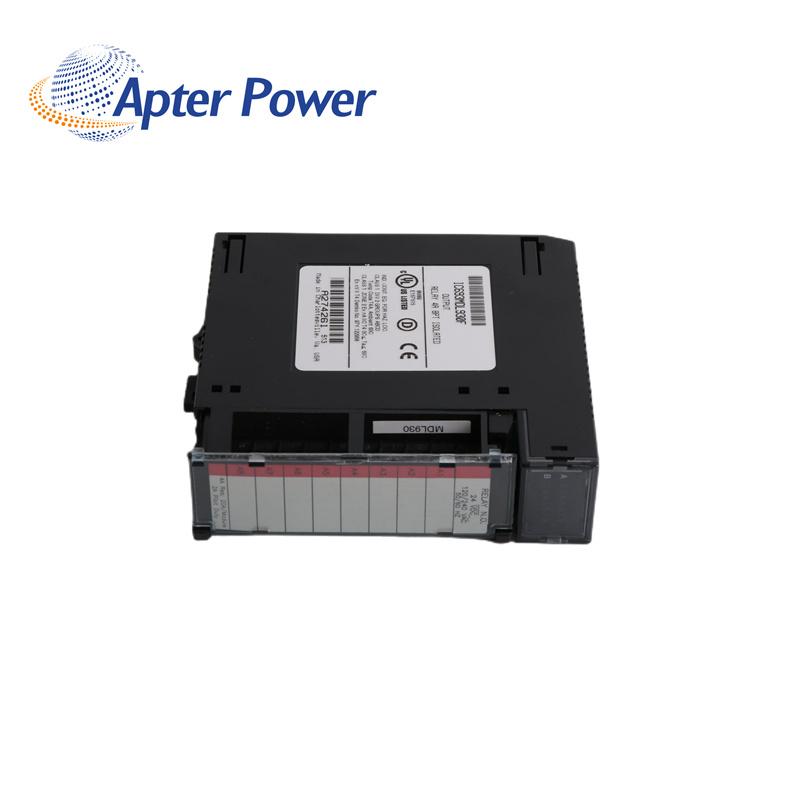

General Electric IC693MDL930 Relay Output Module

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

On-state

4 amps

Part Number

IC693MDL741C

Voltage Range

120/240 volts AC

Product Name

Output Module

Response Time

1 ms

Manufacture Year

2022

Input Current

10 mA

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The IC693MDL930 module is rated for 24 Volts DC and 120/240 Volts AC. For DC power, the operating voltage range is from 5 to 30 Volts DC, and for AC power, the operating voltage range is 5 to 250 Volts AC (at 50 to 60 Hertz). The field side to logic side isolation on the IC693MDL930 module is 1500 Volts. The maximum load rating for the IC693MDL930 module is 20 Amps for UL installation.

The GE Fanuc IC693MDL930 is a 4 Amp Isolated Relay Output module. Designed for the Series 90-30 Programmable Logic Controller, this module provides 8 normally-open relay circuits. These enable the user to control output loads. Each circuit has a 4-amp output switching capacity. Each output point on the module is isolated from the other points and each point has a separate common power output terminal.
