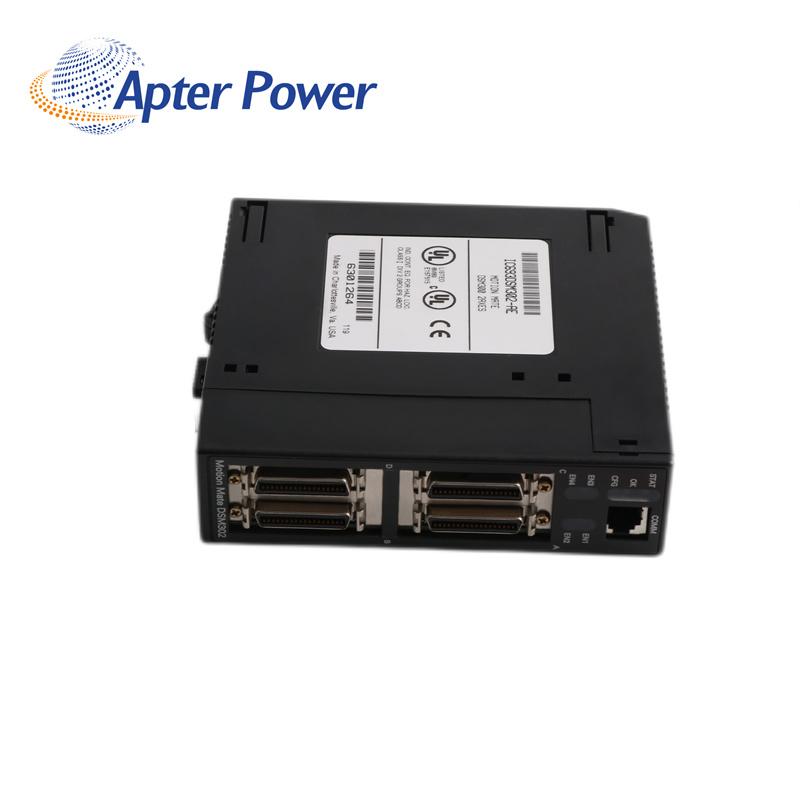

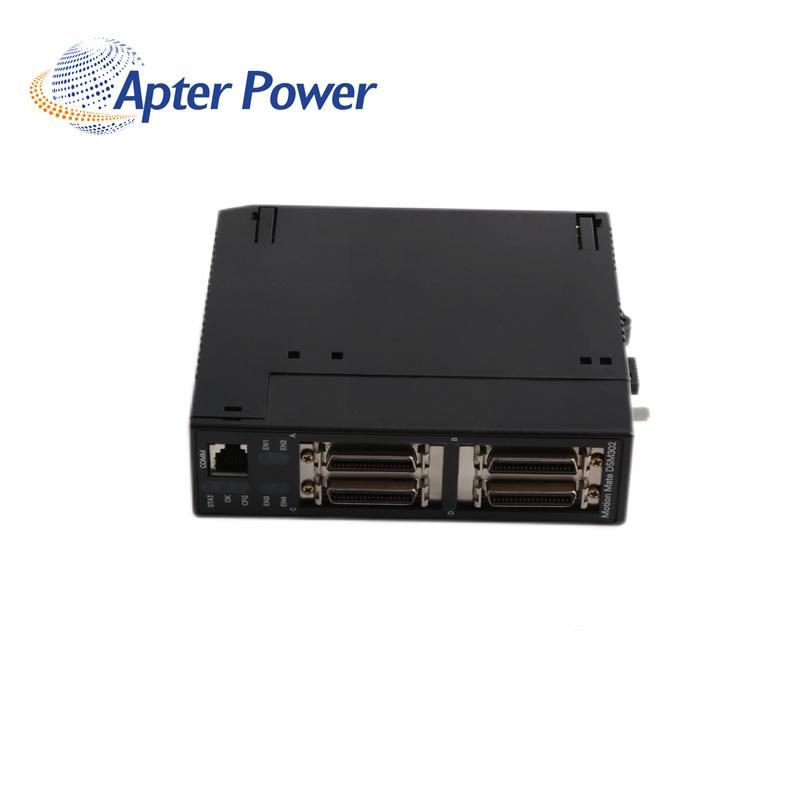

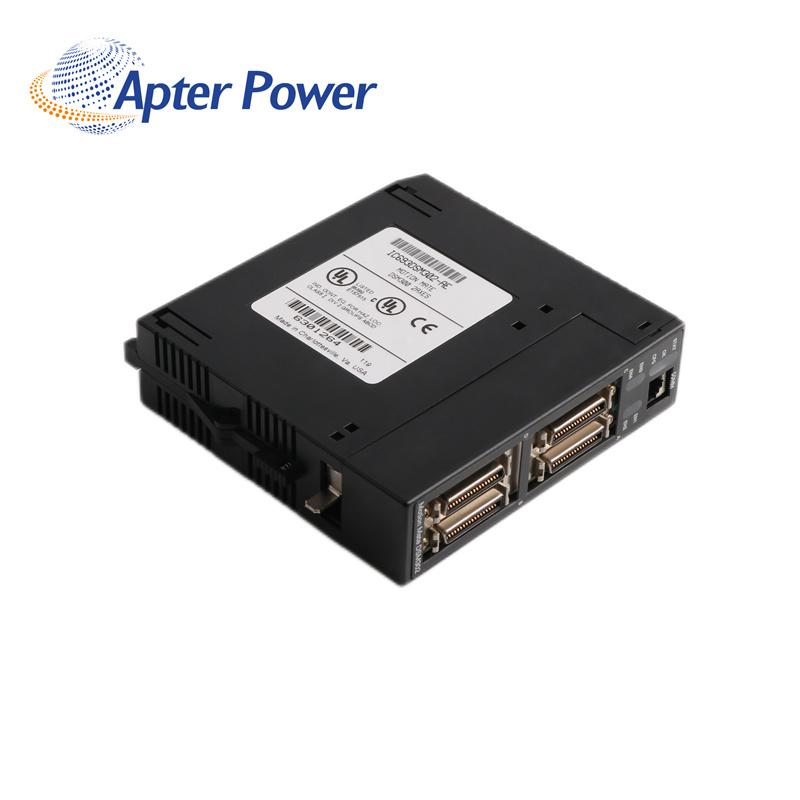

General Electric IC693DSM302 DSM302 motion controller module

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Processor Speed

115Mhz

Part Number

IC693DSM302

Power Module

24 VDC

Product Name

CPU Module

Logic Memory

120

Manufacture Year

2021

Module Current

3 to 20 mA

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The IC693DSM302 is a DSM302 motion controller module.The DSM302 Module is a two-axis motion control module, which is highly integrated with the logic solving and communications functions of the IC693 PLC. Two primary control loop configurations are provided: Standard mode and Follower mode.The Follower Axis Ramp Control Function is enhanced in DSM firmware release 1.30.

The enhancement improves motion smoothness. Prior to this release, when the follower was active and the master in motion, the acceleration/deceleration control during the make-up correction phase was not controlled by a velocity profile. This could cause unwanted machine shock. The enhanced method uses a trapezoidal velocity profile to address this problem. During the entire make-up correction phase, the acceleration/deceleration is limited to the jog acceleration value. Also during the correction, the velocity is not allowed to exceed the maximum.
