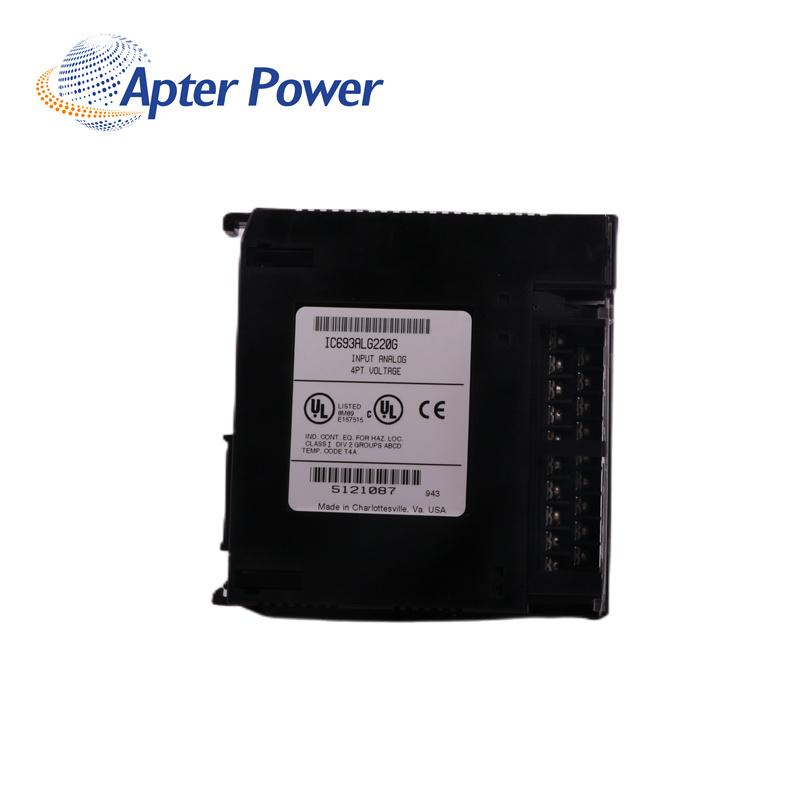

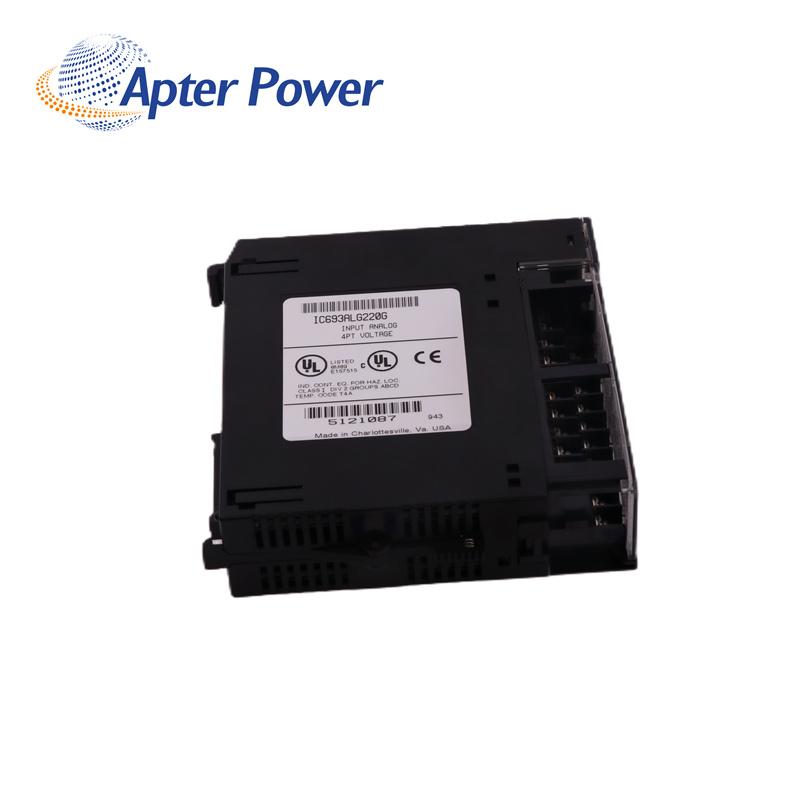

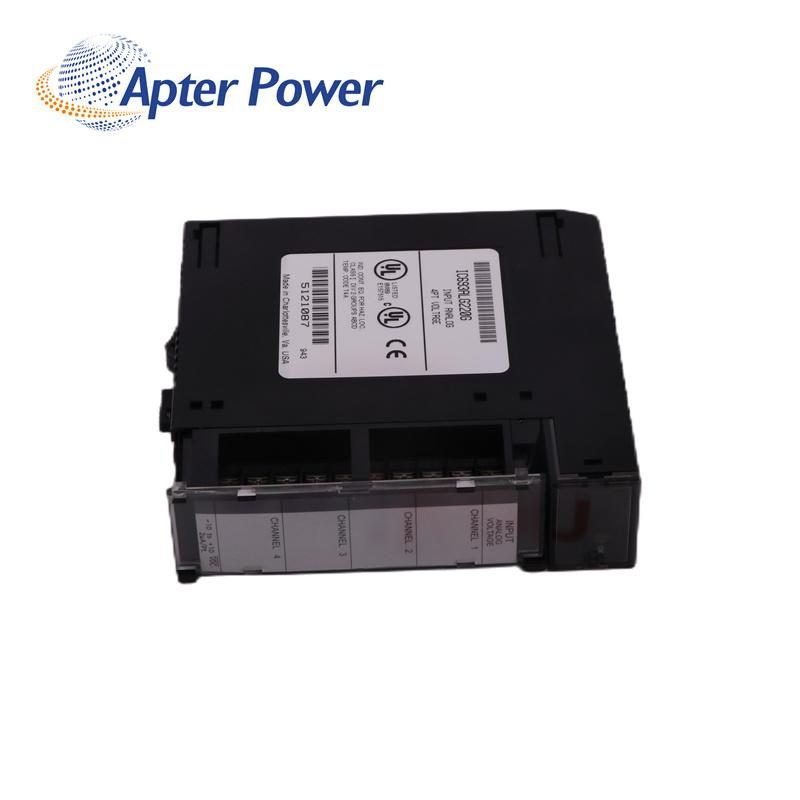

General Electric IC693ALG220G Analog Voltage Input Module

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Output current

27 mA

Part Number

IC693ALG220G

Filter Response

17 Hz

Product Name

Analog Input Module

Series

PACSystem RX3i

Manufacture Year

2022

output voltage

-10 to +10 volts DC

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The GE Fanuc IC693ALG220 channel analog voltage input module features a limited current input mode, and a jumper on every user terminal connector for a channel. The operators of this unit can make use of the jumpers to connect the internal shunt resistor that is rated at 250 Ohms to the circuit, which allows for an input current ranging from -40 to 40 milliamps.

The IC693ALG220 channel analog voltage input module allows for the conversion of input voltages ranging between -10 and 10 Volts. It has a conversion speed of 1 millisecond for every channel, and this makes this input module capable of providing a 4-millisecond update rate for each channel at a time. The signal resolution converted from the GE Fanuc IC693ALG220 input module is 12 bits binary. It comes with LED indicators that show the operation status of the unit to its operators.
