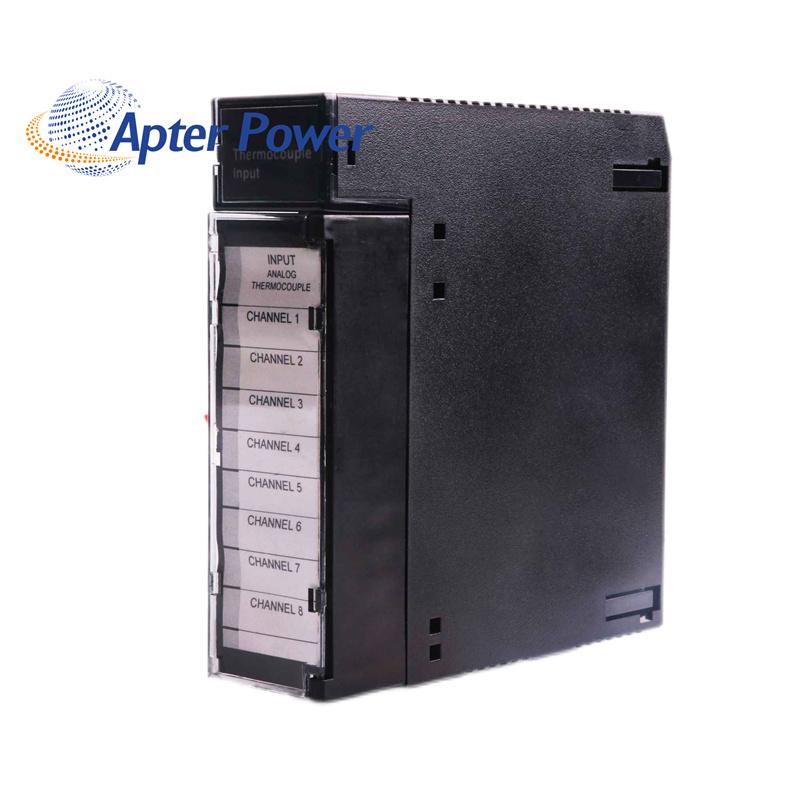

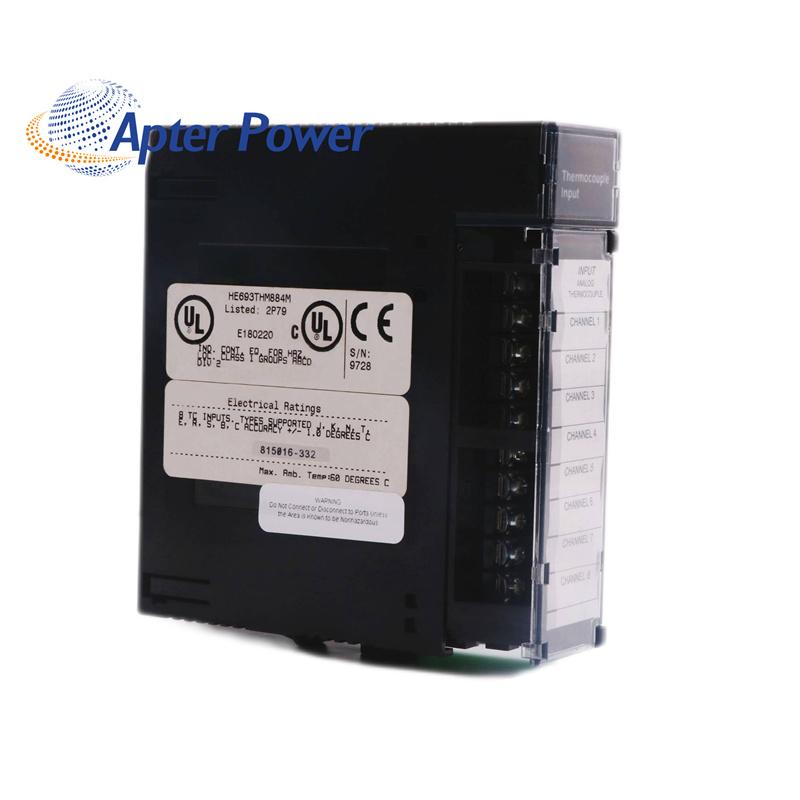

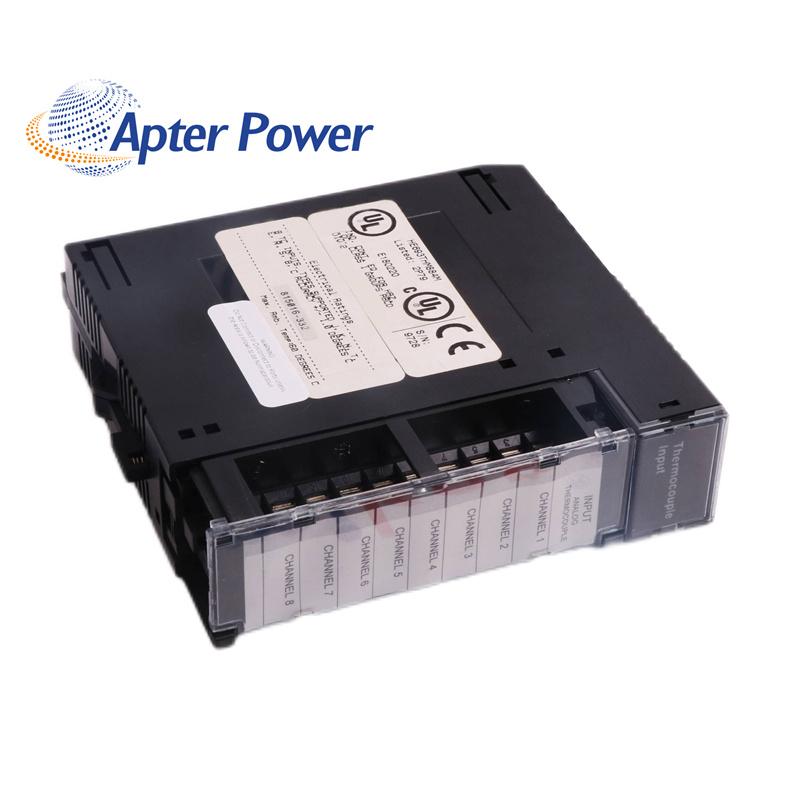

General Electric HE693THM884 Thermocouple Input Module

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Operating Temperature

0 to 60°C

Part Number

HE693THM884

Accuracy

± 0.5°C typical

Product Name

Thermocouple Input Module

Resolution

0.1°C

Manufacture Year

2021

Relative Humidity

5% to 95%

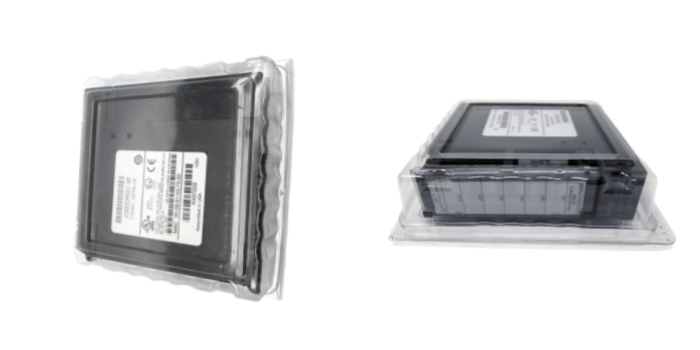

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The HE693THM884 is a Thermocouple Input Module.The Horner APG High Resolution Thermocouple Input Module allows thermocouple temperature sensors to be directly connected to the PLC without external signal processing (transducers, transmitters, etc.). All analog and digital processing of the thermocouple signal is performed on the module. This highresolution module (0.1°C), can report values to the PLC I/O table in 0.5°C, 0.5°F, 0.1°C, or 0.1°F increments. The module features eight thermocouple channels assigned to 8 %AI input registers. There are 16 %I Alarm Bits, one open circuit alarm and one setpoint alarm for each channel.

Alarm setpoints are set for each channel through 8 %AQ registers. Open circuit alarm bits for each channel correspond to the first eight successive %I bits, and the alarm setpoints for each channel correspond to the second eight successive %I bits.On the THM888, A feature available on Revision H or later is auto detected external AD592 cold junction compensation. This allows cold junction compensation to be accomplished in a remote isothermal terminal strip, with standard copper wire run from the remote terminal strip to the module. AD Converter on THM888 hardware has been optimized for 60Hz rejection.
