General Electric DS200CTBAG1ADD Mark V Terminal Board

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Master Gateway

 -20 to 55°C

Part Number

DS200CTBAG1ADD

Voltage

12 VDC

Product Name

Contactor Pilot Card

Series

Mark V

Manufacture Year

2021

Input Type

V / I

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The DS200CTBAG1ADD is a terminal board designed for use within the GE Mark V Speedtronic system.  The Speedtronic line was created by General Electric for the control of both large and small gas and steam turbine systems.  The MKV can be designed with either Simplex or  TMR/triple modular redundant architecture to meet the needs of the connected turbine system.These circuit boards are no longer fabricated and distributed by GE but can be purchased through AX Control as fully tested and refurbished models.

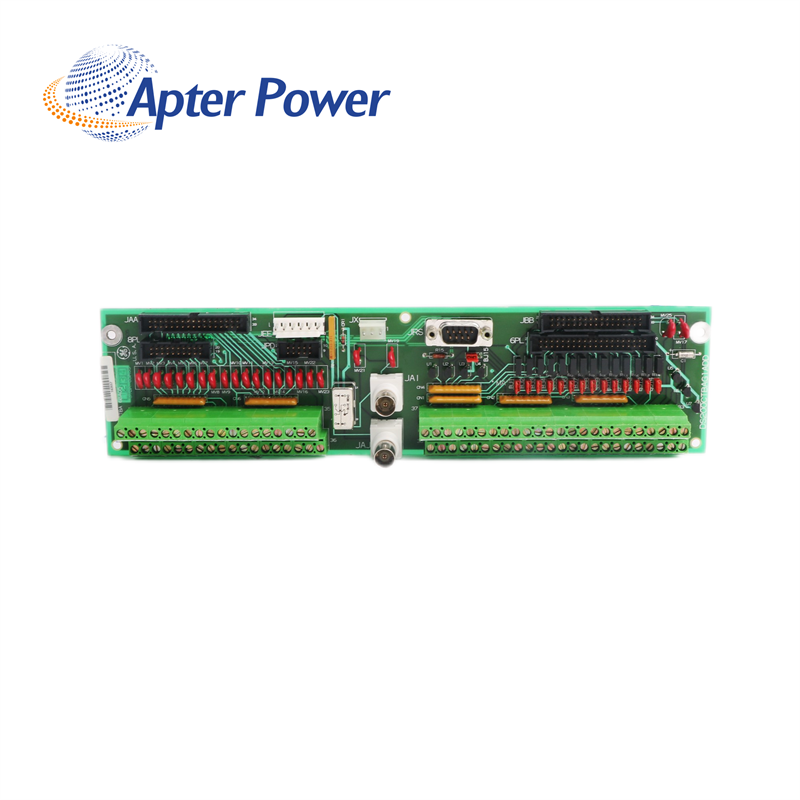

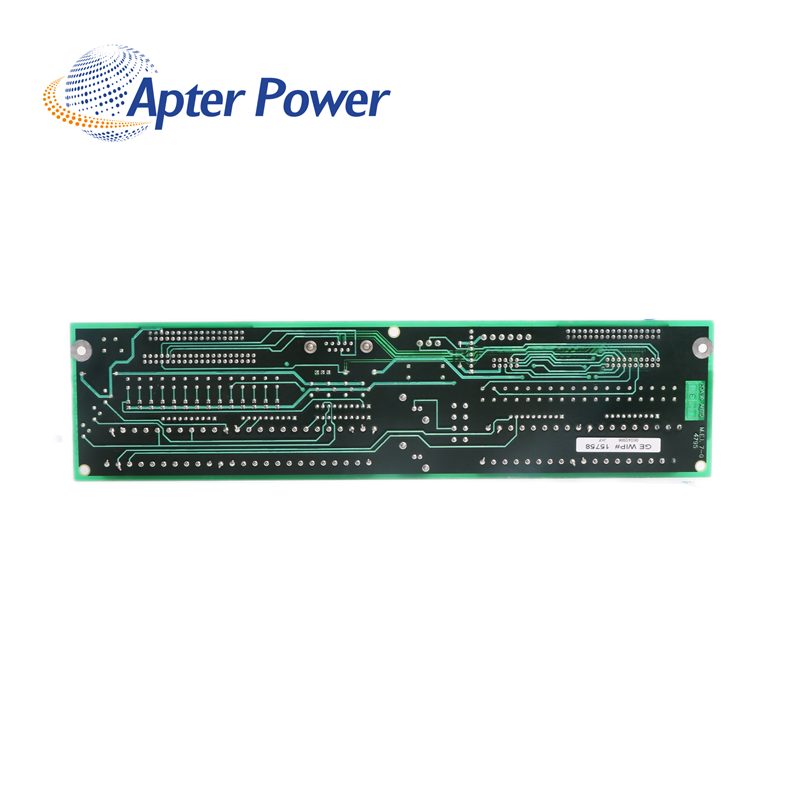

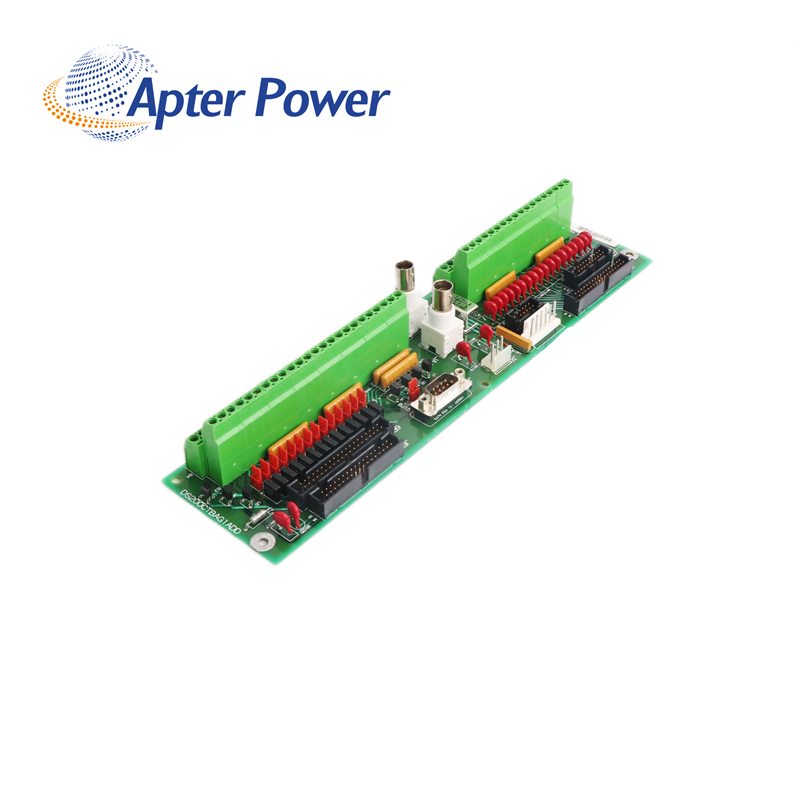

The DS200CTBAG1ADD is a long, narrow board with only a few types of components.  It is drilled at each corner and along its long edges to allow for mounting hardware and other connections.Two of these drill holes are ringed with a conductive material. The DS200CTBAG1ADD has two double-stack terminal strips located on one long board edge with multiple connectors on each terminal strip.  There are five vertical pin cable connectors, two vertical pin header connectors, and a 9-pin male serial connector.
