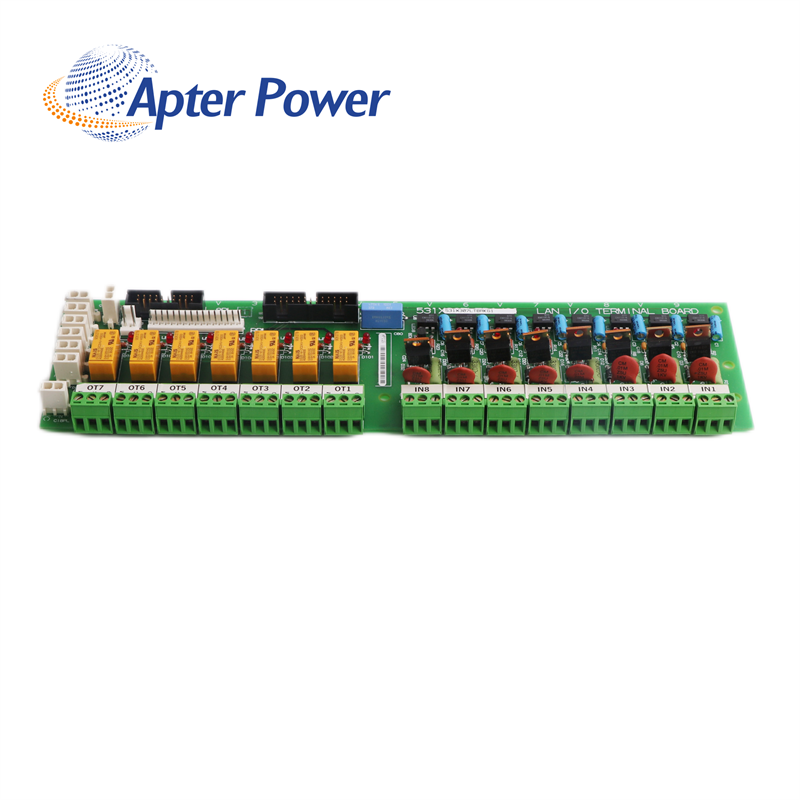

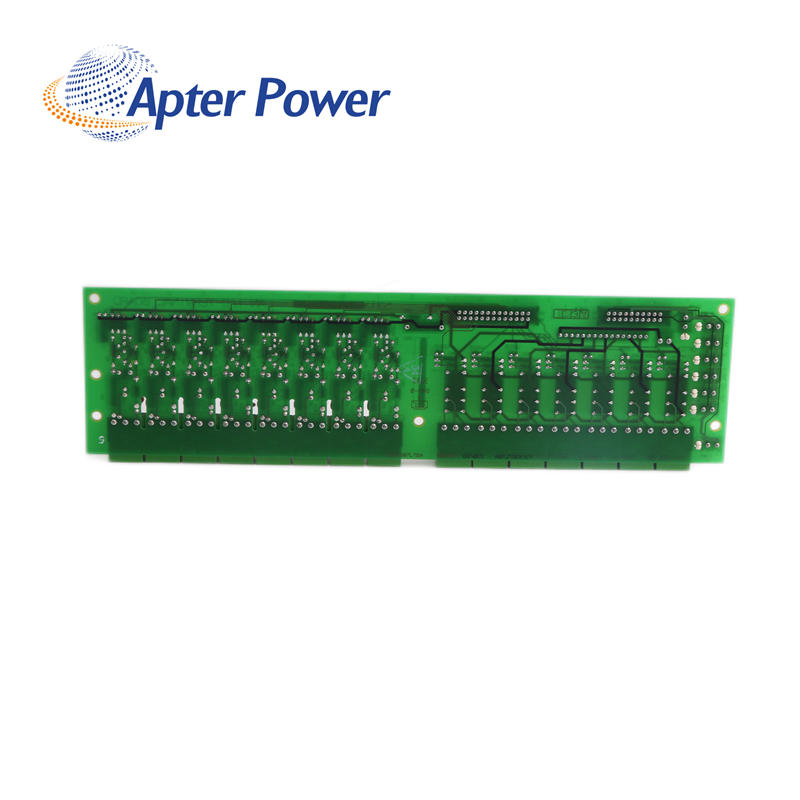

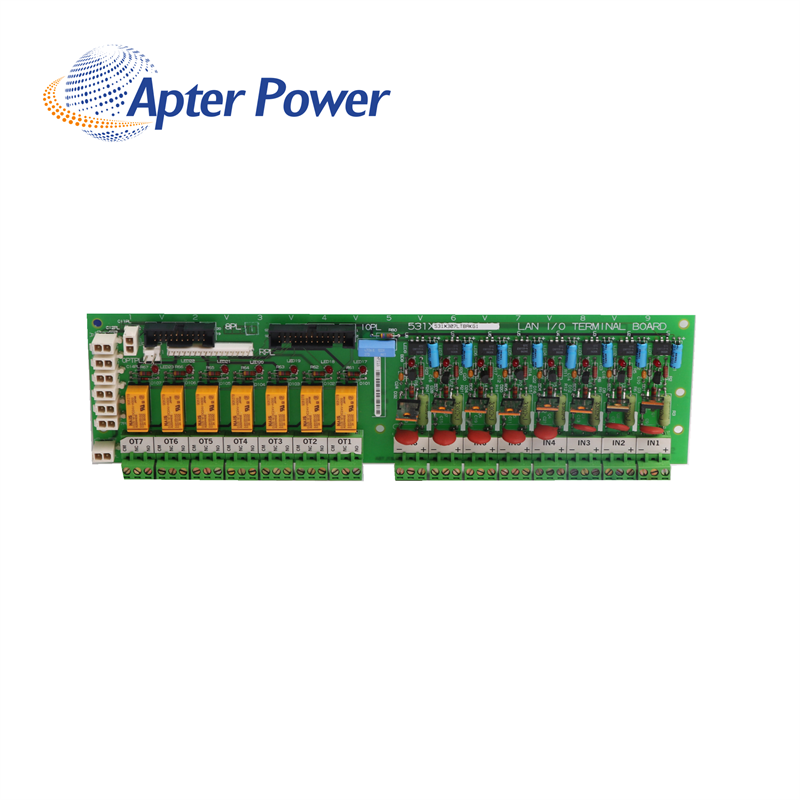

General Electric 531X307LTBAKG1 I/O Terminal Board

Manufacturer

General Electric

Condition

100% New Original

Brand

General Electric

Rated Voltage

120 VAC

Part Number

531X307LTBAJG1

Input Voltage Range

0-265 VAC

Product Name

I/O Terminal Board

Input Current

8.2 mA per point

Manufacture Year

2022

Input Impedance

16 K typical

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The General Electric 531X307LTBAKG1 LAN (local area network) terminal board was developed for the 531X series. Members of this series are replacement boards, allowing for installation in a number of GE brand drives and exciters. The card operates as an interface system for the controlling drive and a number of externally connected devices. Possible external devices include contactors, interlocks, and indicator lights.

An interface system for LAN signals to and from the drive is available when this card is installed. 531X307LTBAKG1 provides the drive with eight configurable control input plugs. Integrated card inputs can accept both AC and DC voltages rated between 2 and 240 V. These voltages are then converted into 24VDC logic signals and subsequently sent to the control board. The card’s input plugs can send signals throughout the LAN terminal, the drive control board, and the NTB terminal.
