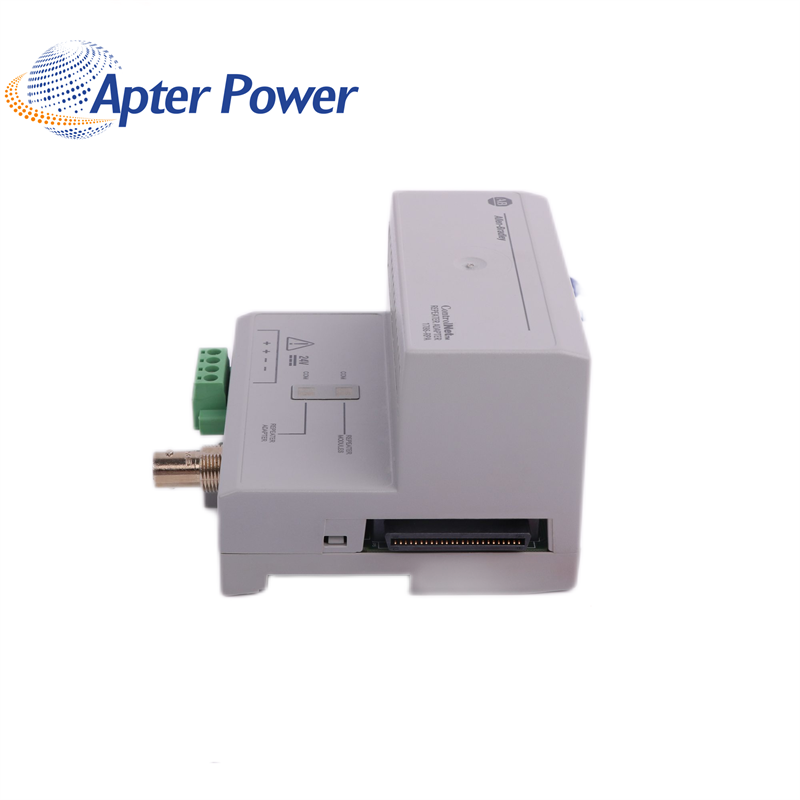

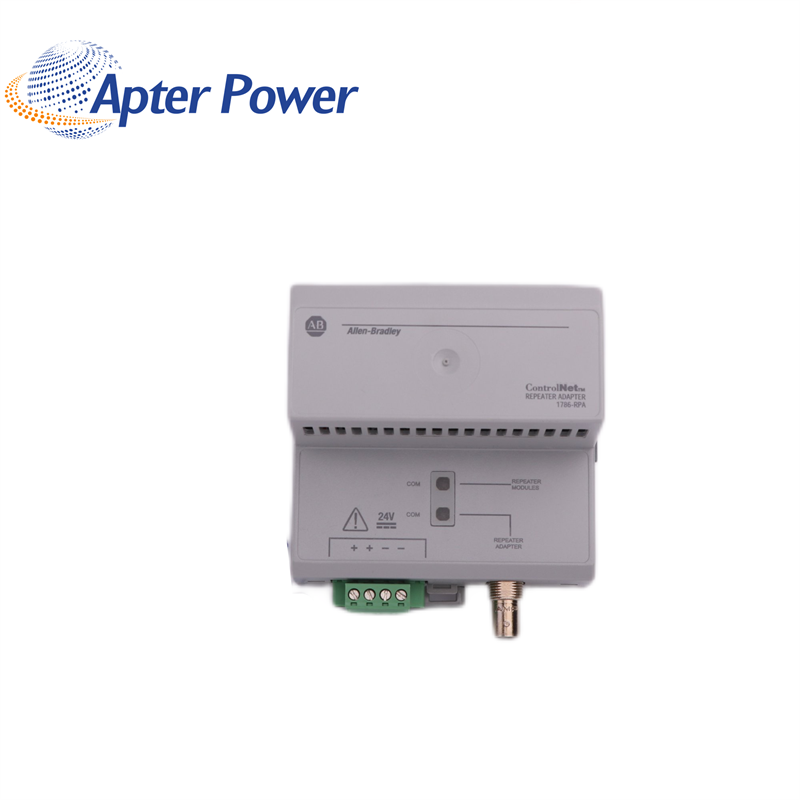

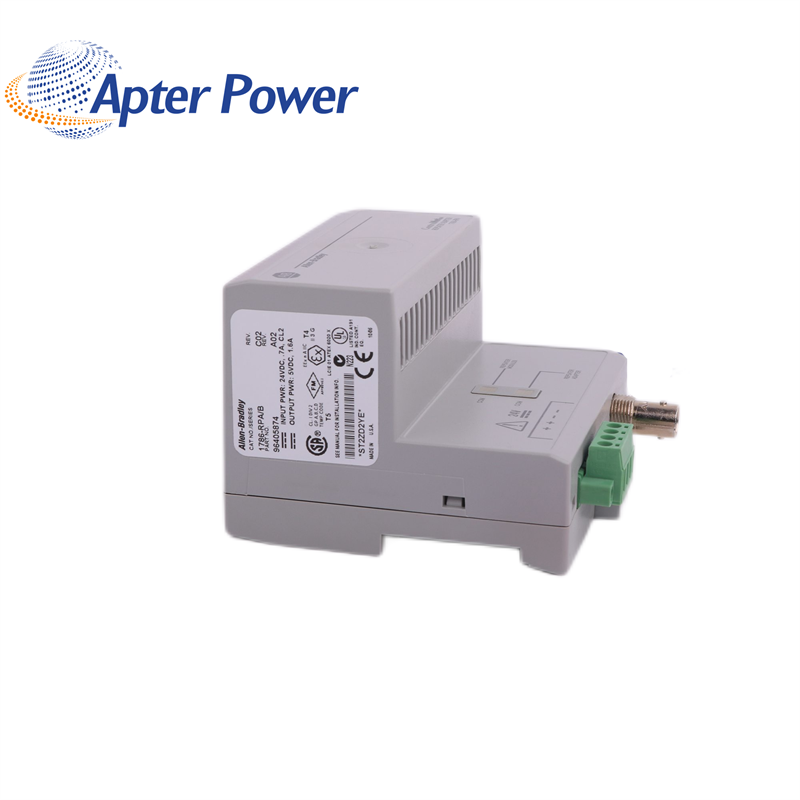

1786-RPA ControlNet Modular Repeater Adaptor

Manufacturer

Automation

Condition

100% New Original

Brand

Input Filter Time

0.15 ms

Part Number/Catalog No.

1786-RPA

Input Current range

18-36VDC

Module Type

Repeater Adapter Module

Input Power

24 Volts DC

Manufacture Year

2021

Power Dissipation

8.8 W

Product Package

Original Package

UPC

10612598171092

The 1786-RPA is compatible for use with 1786-RPCD repeater dual-copper module, 1786-RPFS repeater short-distance fiber module, 1786-RPFM repeater medium-distance fiber module, 1786-RPFRL fiber ring repeater module, and 1786-RPFRXL fiber ring repeater module. The maximum allowable adapters connected in series is 20 1786- RPA.The 1786-RPAB repeater adapter requires 24 Volt DC input power. At 5 VDC, it can provide a maximum of 1.6 A of backplane output current.

The 1786-RPA repeater adapter serves different functions, such as extending the network’s length, performing network media conversions from coaxial or copper media to fiber media, as well as the opposite way from fiber media to coaxial or copper media, providing power to the repeater modules, and for the creation of a ring, star, or point-to-point topology.

The 1786-RPA is a ControlNet Modular Repeater Adapter. This module is a ControlNet communication network accessory that is primarily used to extend the length of a ControlNet network as well as assemble different topologies such as Star, Ring, Linear or Point-to-Point topology. This repeater module may also be used when physically converting ControlNet cable medium from Coaxial cable to Fiber Optic and Fiber Optic to ControlNet coax cable.
