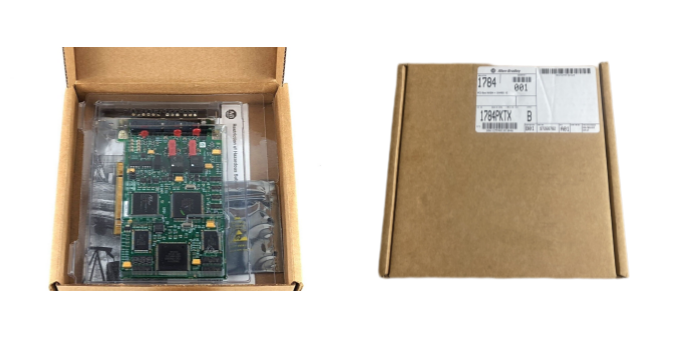

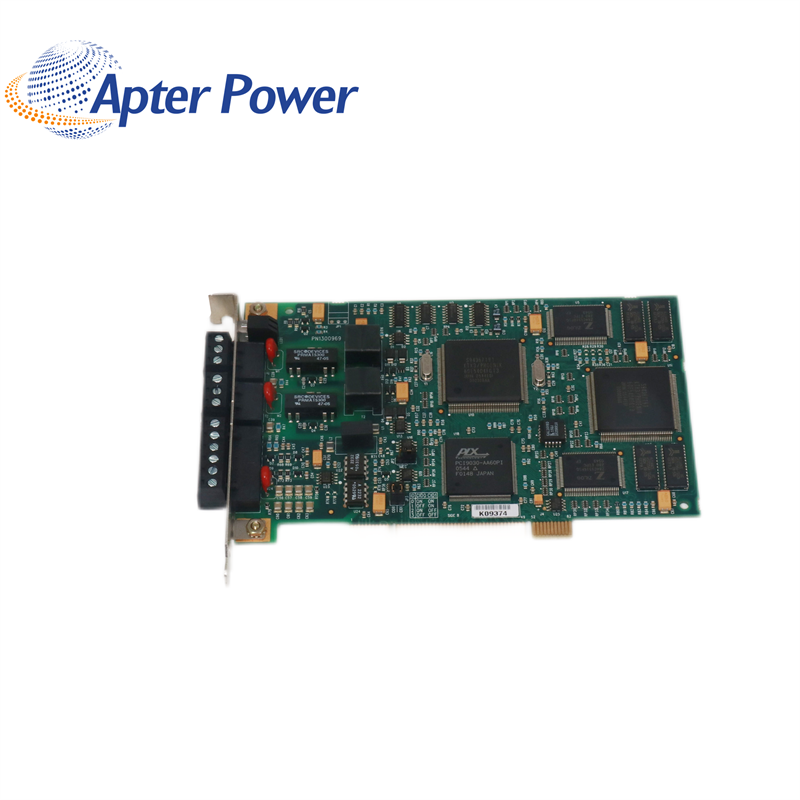

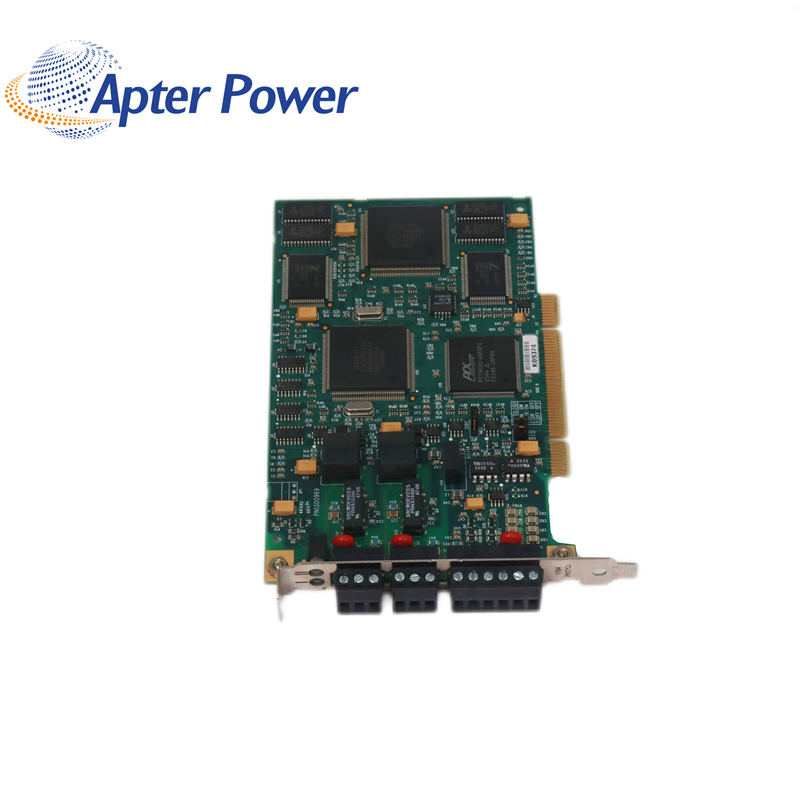

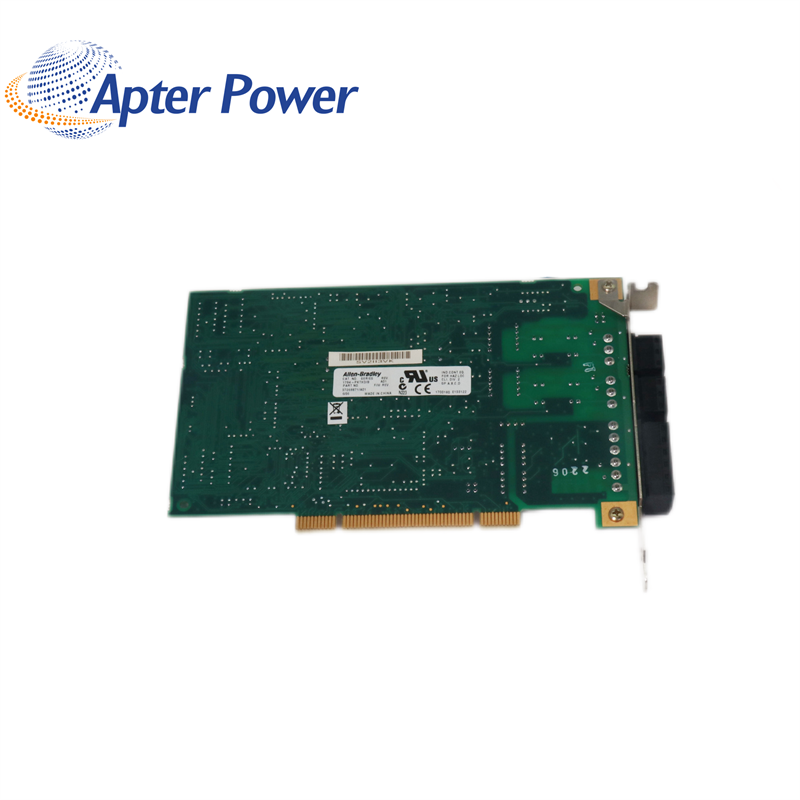

1784-PKTXD Computer Interface Card

Manufacturer

Automation

Condition

100% New Original

Brand

Backplane Current

420 Miliamperes

Part Number/Catalog No.

1784-PKTXD

Isolation Voltage

24 Volts

Module Type

Main Processor Module

Host Interface

Host Interface

Manufacture Year

2021

Type

2 Channel

Product Package

Original Package

UPC

10612598145126

The 1784-PKTXD Card is ideal for use as a network interface card. Therefore, since it is a peripheral component interconnect universal card, it must be inserted into the PCI bus slot. If the operators are using a universal card, it must be placed in a PCI bus slot keyed for either the 3.3-Volt or for the 5-Volt signaling. The 1784-PKTXD Card communicates with the nodes that are placed on the Data Highway Plus network. This includes the PLC-5, the PLC-5/250, and the SLC 5/04 processors. The component performs data transmission, management, and the local network diagnostics.

The 1784-PKTXD Card and the host PC exchange the data through a dual-port interface. This dual-port interface requires up to 4 KB of memory that begins at the base memory address that is addressed to the card by the PCI BIOS whenever the PC is started.The 1784-PKTXD Card incorporates the Universal PCI card as a standard feature. Therefore, the card is compatible with different operating systems. The 1784-PKTXD Card can be used in environments where there is a need for general programming, configuration, and monitoring capabilities through an industrial device or through a computer desktop.
