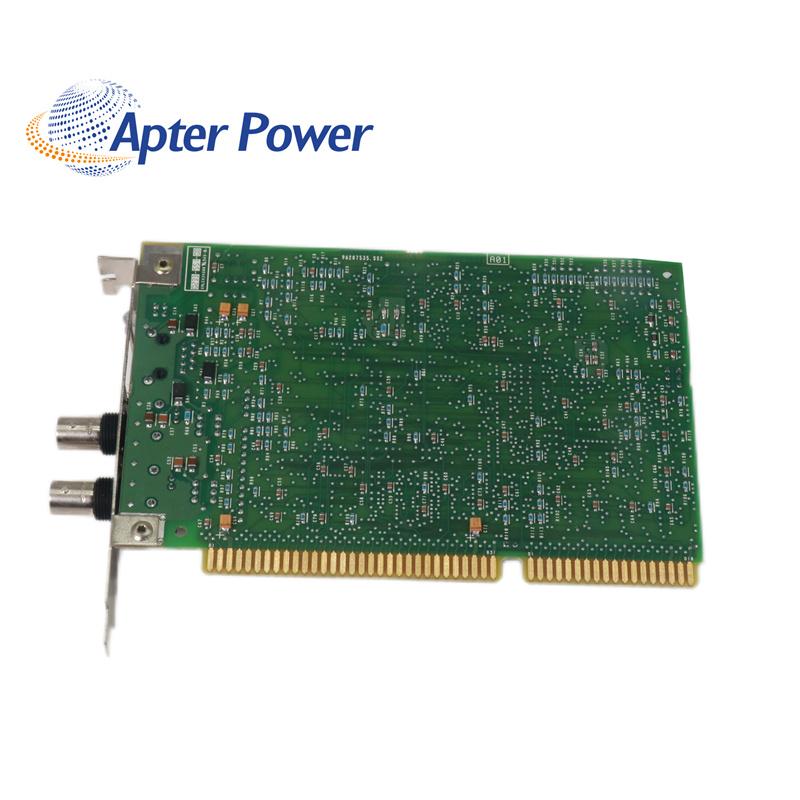

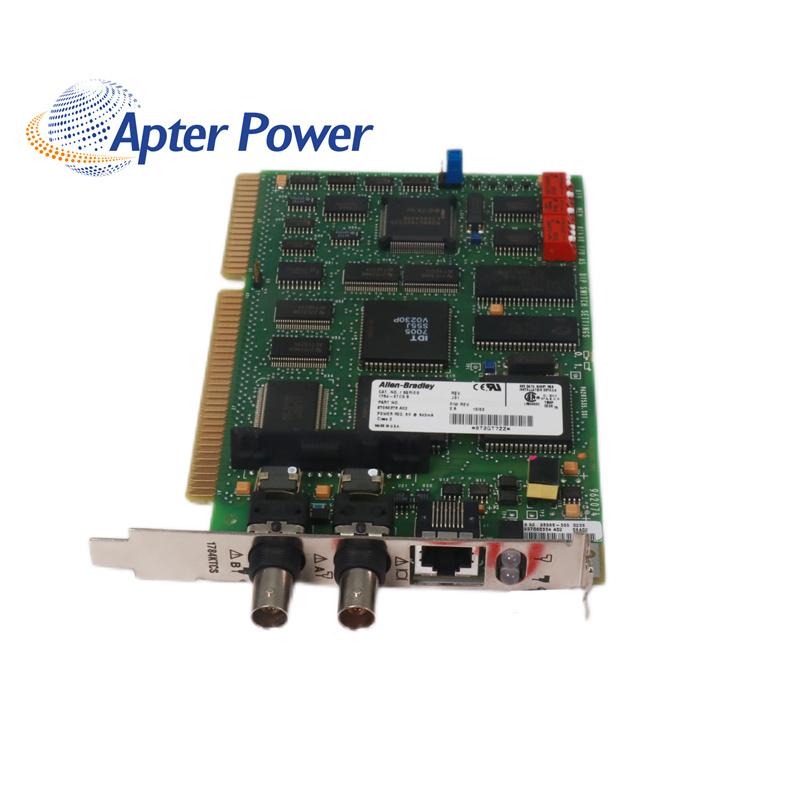

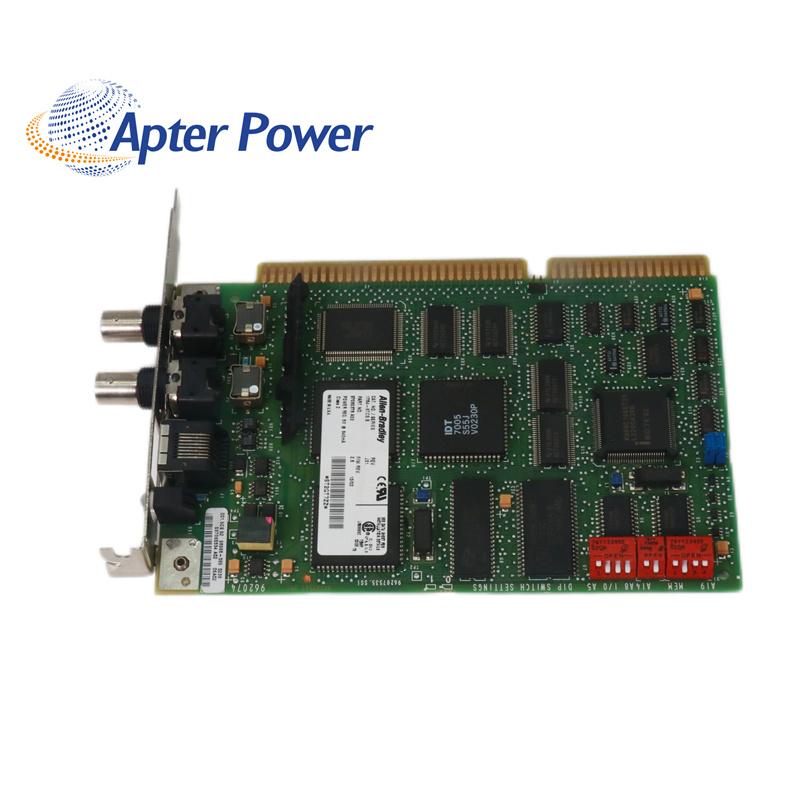

1784-KTCS ControlNet scanner card

Manufacturer

Automation

Condition

100% New Original

Brand

Storage temperture

-40 to 85 oC

Part Number/Catalog No.

1784-KTCS

Input Voltage

5 Volts DC

Module Type

ControlNet scanner card

Relative humidity

5 to 95%

Manufacture Year

2021

Input current

640 milliamps

Product Package

Original Package

UPC

820911695714

The 1784-KTCS card is approved by the CE and FM standards. Before the card is installed in a computer, the physical addresses for the ROM I/O expansion area of system memory and processor I/O map should be configured. Four 1784-KTCS cards can be installed in a computer as long as each card has a unique I/O space and base memory address.

The 1784-KTCS card uses CMOS technology and it is therefore sensitive to ESD. To guard against ESD damage, the installers should take the following precautions: cards that are not in use should be stored in anti-static containers, the interface connector pins and backplane connector should not be touched, and a grounded object should be touched prior to handling the card.

The 1784-KTCS card is a ControlNet scanner card. It is also an interface card which lets the 16-bit ISA or the 32-bit EISA-compatible computers communicate with the ControlNet networks.The power requirements for the 1784-KTCS card are 5 Volts DC and a maximum current of 640 milliamps. The operating card slot temperature range should be between 0 and 50 degrees Celsius and the non-operating slot temperature range is -40 to 85 degrees Celsius.
