Product Origin:
USAWeight:
0.38KGDimension:
2.8cmx15.3cmx26cmCondition:
new and originalLead Time:
in stockCertificate:
coo/test report/warranty letter
Technical Specifications for 1771-OG
|
Manufacturer |
Automation |
|
Condition |
100% New Original |
|
Brand |
|
Backplane Current |
168 Miliamperes |
|
|
Part Number/Catalog No. |
1771-OG |
Operating Voltage |
5.0-5.3 Volts |
|
|
Module Type |
Digital Output Module |
Input Voltage |
5.0-5.3 Volts |
|
|
Manufacture Year |
2021 |
Number of Inputs |
8 |
|
|
Product Package |
Original Package |
UPC |
10662468205839 |
|

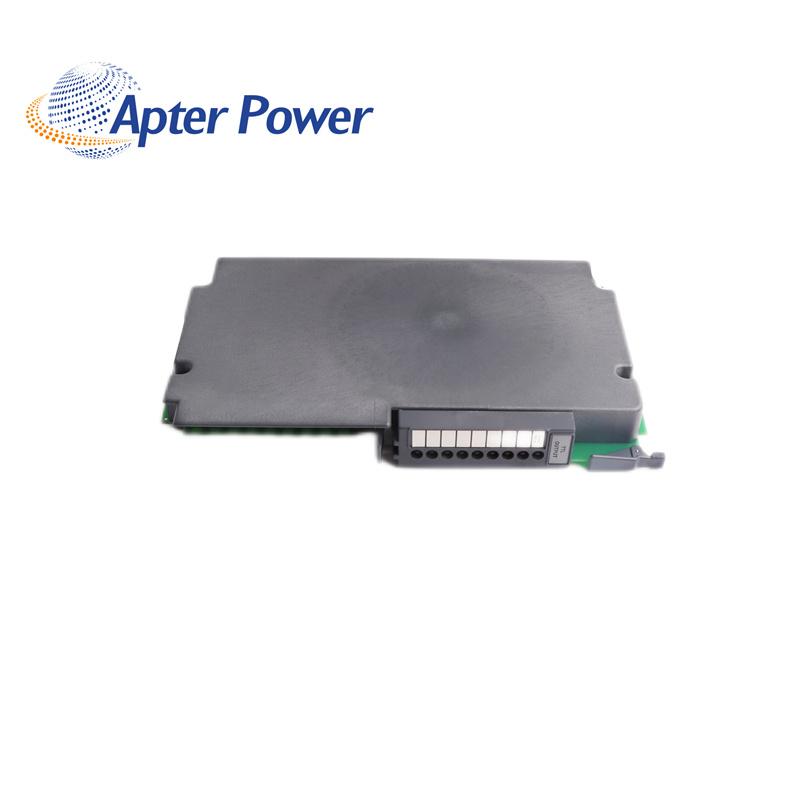

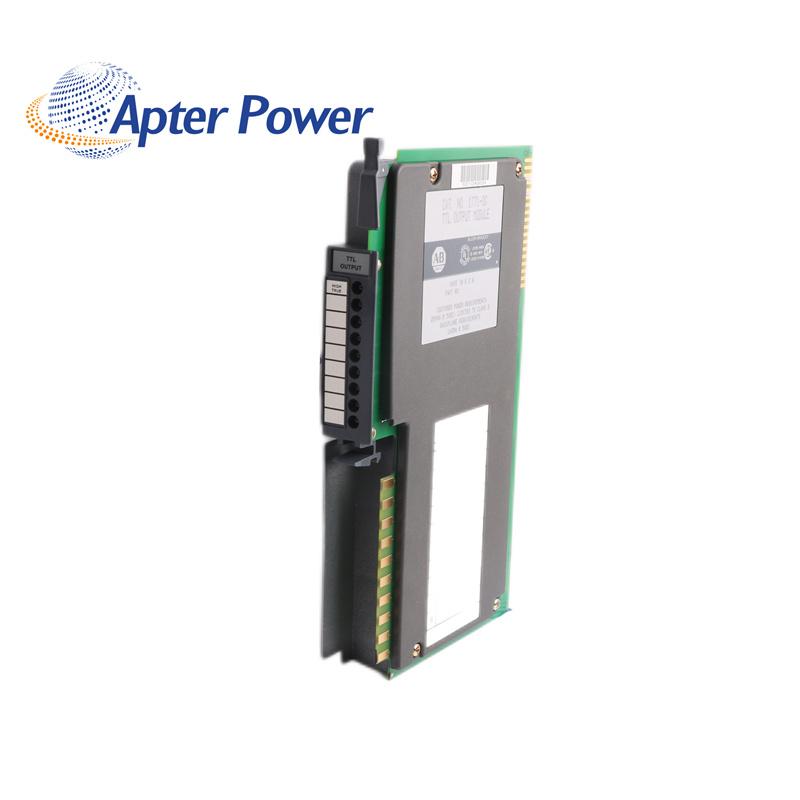

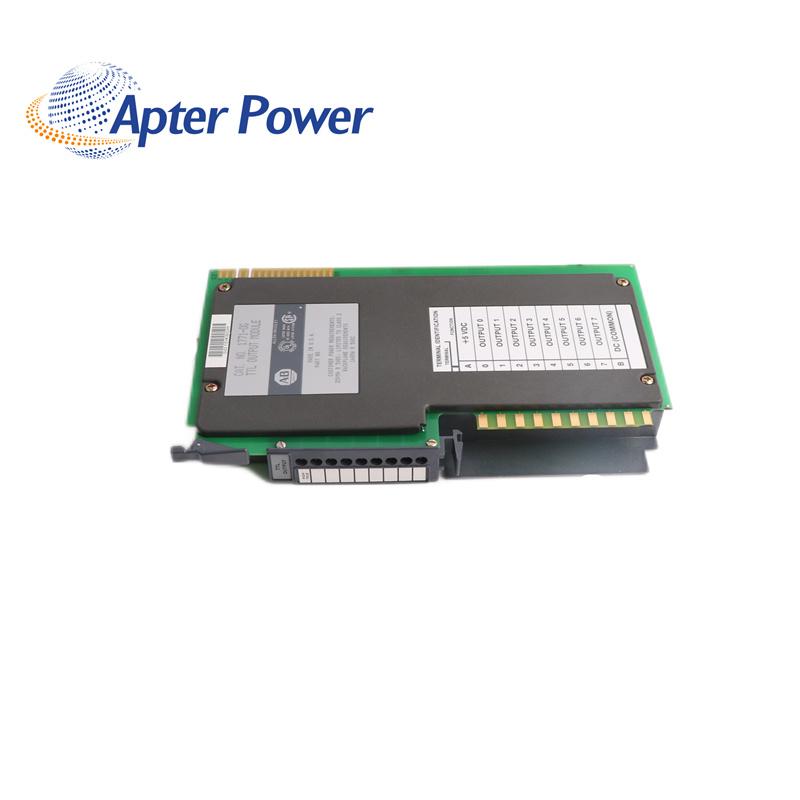

The 1771-OG PLC 5 TTL Output Module by is an output module with 8 sinking/sourcing outputs and is located on a slot of the 1771 I/O chassis. It is an output module with an output voltage range of 2-5.25V DC for High = True, and -0.2-0.8V DC for Low = True, and the maximum current on the output is 1mA (source) and 20mA (sink). For transmission of TTL signals, the module requires a separate 5V (+0.25V) DC power supply with a maximum ripple of 50mV peak-to-peak and 250mA current is equally required from the output of the power supply.
The outputs have a maximum signal delay time of 1ms and the module dissipates 2.2W maximum heat with 7.5 BTU/hr maximum thermal dissipation when operational. The 1771-OG comes with a 1771-WC Field wire arm with a wiring arm screw torque of 7-9 inch-pounds and uses a 14 -gauge stranded maximum wire size with 3/64-inch thick insulated Shielded, Belden 8761 wire as circuit conductors.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
What happens next?
 |
1. Email confirmation You will get an email confirming that we have received your enquiry. |
 |
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
 |
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Original factory packing
Shipping packing process
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product,you can send it back to replace.
What happens next?
|
|
1. Email confirmation You will get an email confirming that we have received your enquiry. |
|
|
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
|
|
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Please click the link below to access the product manual.
uploadfile/downloads/1771-OG.pdf
