Product Origin:
USAWeight:
0.78KGDimension:
3cmx15cmx25.8cmCondition:
new and originalLead Time:
in stockCertificate:
coo/test report/warranty letter
Technical Specifications for 1771-NIS
|
Manufacturer |
Automation |
|
Condition |
100% New Original |
|
Brand |
|
Backplane Current |
2.9 Amperes |
|
|
Part Number/Catalog No. |
1771-NIS |
Isolation Voltage |
24 Volts DC |
|
|
Module Type |
Analog I/O Module |
Mounting |
Rack Mountable |
|
|
Manufacture Year |
2021 |
Input Power |
95 W |
|
|
Product Package |
Original Package |
UPC |
10612598122155 |
|

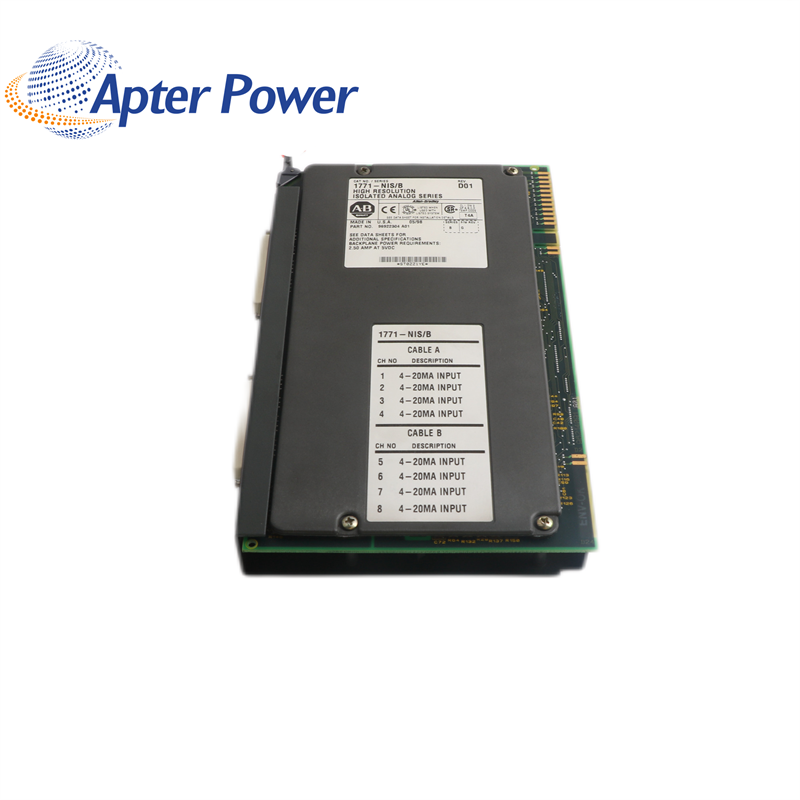

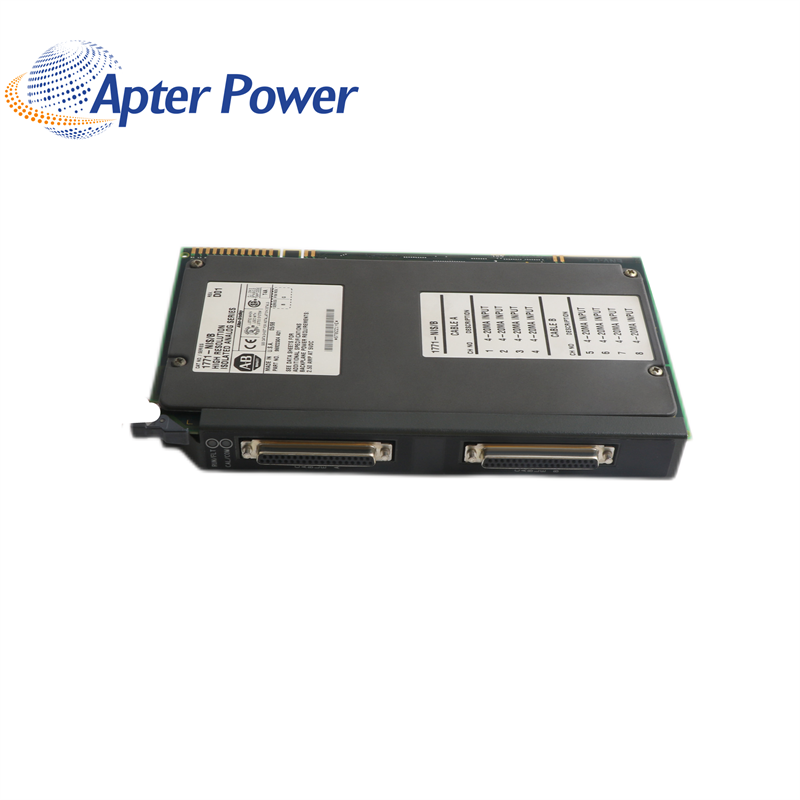

The 1771-NIS is an I/O module which belongs to the 1771-N high resolution I/O module series. It is equipped with 8 current input channels rated for 4-20mA. The 1771-NIS module provides power for the input circuit loops. The current drawn by the 1771-NIS from the I/O chassis backplane is 2.4A and the total power dissipated is 12W. The 1771-NIS interfaces with PLC-5/250, PLC-3 and PLC-5 controllers.
The 1771-NIS module needs a maximum of 5s to detect an open input circuit and it provides 24V DC overvoltage protection. A range of 50 dB to 60 dB provides the values for normal mode rejection whereas the typical common mode rejection is 150 dB. The value for the offset drift is ±200nA/°C whereas the value for the gain drift is ±95 ppm/°C. The update time per module is a maximum of 25s and the bandwidth range at input channels is 9 Hz. The under-range and over-range limit values are 3.2mA and 21mA, respectively. The values for the 1771-NIS’s input channel calibration are 1 mA / 21 mA.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
What happens next?
 |
1. Email confirmation You will get an email confirming that we have received your enquiry. |
 |
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
 |
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |

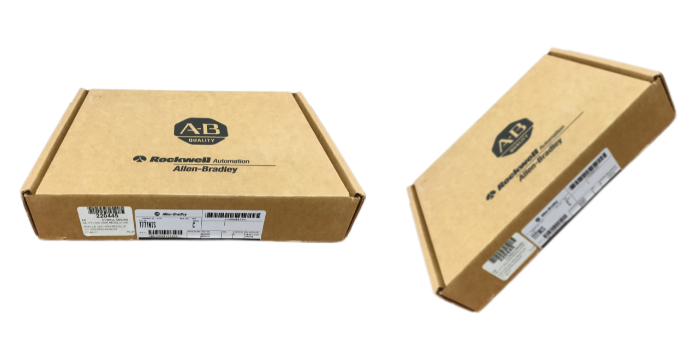

Original factory packing
Shipping packing process
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product,you can send it back to replace.
What happens next?
|
|
1. Email confirmation You will get an email confirming that we have received your enquiry. |
|
|
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
|
|
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Please click the link below to access the product manual.
uploadfile/downloads/1771-NIS.pdf
