Product Origin:
USAWeight:
0.6KGDimension:
7cmx27cmx15.2cmCondition:
new and originalLead Time:
in stockCertificate:
coo/test report/warranty letter
Technical Specifications for 1771-IK
|
Manufacturer |
Automation |
|
Condition |
100% New Original |
|
Brand |
|
Outputs |
5 Volts DC |
|
|
Part Number/Catalog No. |
1771-IK |
Backplane Current |
1.2 Amperes |
|
|
Module Type |
Positioning I/O Modules |
Model Status |
Earlier Model |
|
|
Manufacture Year |
2021 |
Input Frequency |
50 Kilohertz |
|
|
Product Package |
Original Package |
UPC |
10659598001641 |
|
The 1771-IK module is a counter and encoder module for PLC-5 systems. The module supports 1 counter. The encoder supports dual channels and the counter supports 1 channel. The supported peak input pulse rate is 50 kilohertz. The 1771-IK module supports both the block transfer and single transfer modes. The module requires an external power supply rated for 12 to 24 Volts DC. The input circuits require a maximum current rating of 170 milliamps and the output circuits require a maximum current of 1.08 Amps.
The device driving the input terminal must be capable of sinking 10 milliamps of current for a 12 Volts DC external power supply. The device driving the input terminal must be capable of sinking 20 milliamps of current for a 24 Volts DC external power supply.The maximum power dissipation for the 1771-IK module is 12.1 Watts. The thermal dissipation for the module is 41.3 BTU per hour. The module is installed in an empty slot on an 1771 chassis.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
What happens next?
 |
1. Email confirmation You will get an email confirming that we have received your enquiry. |
 |
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
 |
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |

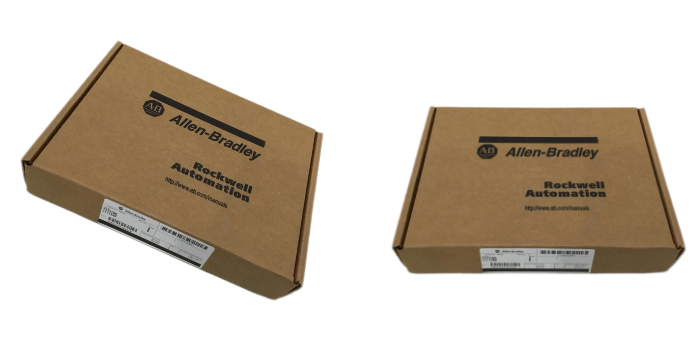

Original factory packing
Shipping packing process
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
What happens next?
|
|
1. Email confirmation You will get an email confirming that we have received your enquiry. |
|
|
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
|
|
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Please click the link below to access the product manual.
uploadfile/downloads/1771-IK.pdf
