Product Origin:
USAWeight:
0.2KGDimension:
14cmx13cmx3.3cmCondition:
new and originalLead Time:
in stockCertificate:
coo/test report/warranty letter
Technical Specifications for 1756-IV16
|
Manufacturer |
Automation |
|
Condition |
100% New Original |
|
Brand |
|
Inputs |
16 |
|
|
Part Number/Catalog No. |
1756-IV16 |
Input Voltage |
12-24 Volts DC |
|
|
Module Type |
Digital DC Input Module |
Operating Voltage Range |
10-30 Volts DC |
|
|
Manufacture Year |
2021 |
UPC |
10612598264343 |
|
|
Product Package |
Original Package |
Series |
ControlLogix |
|

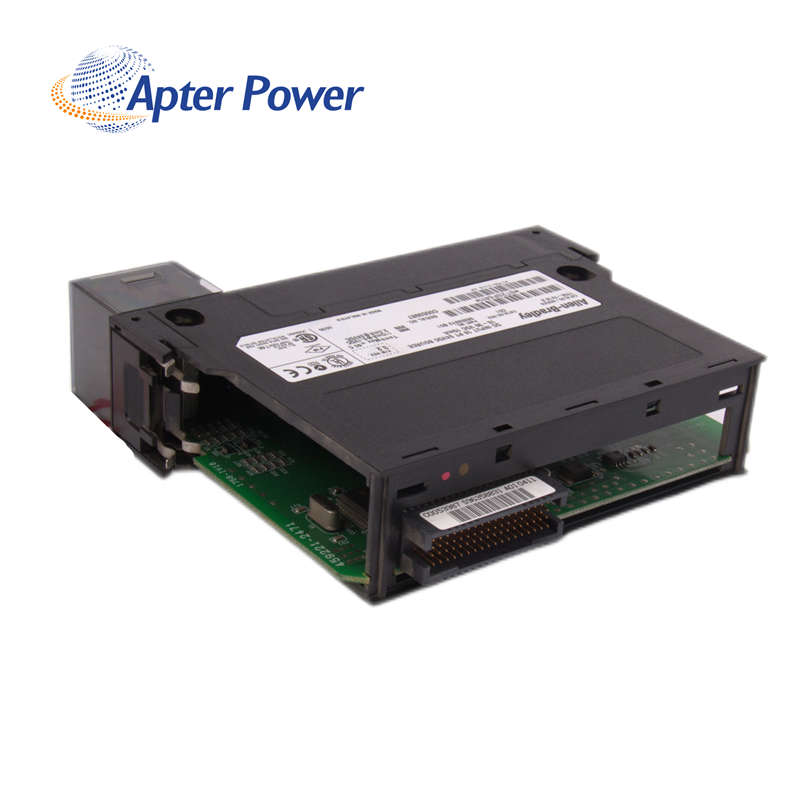

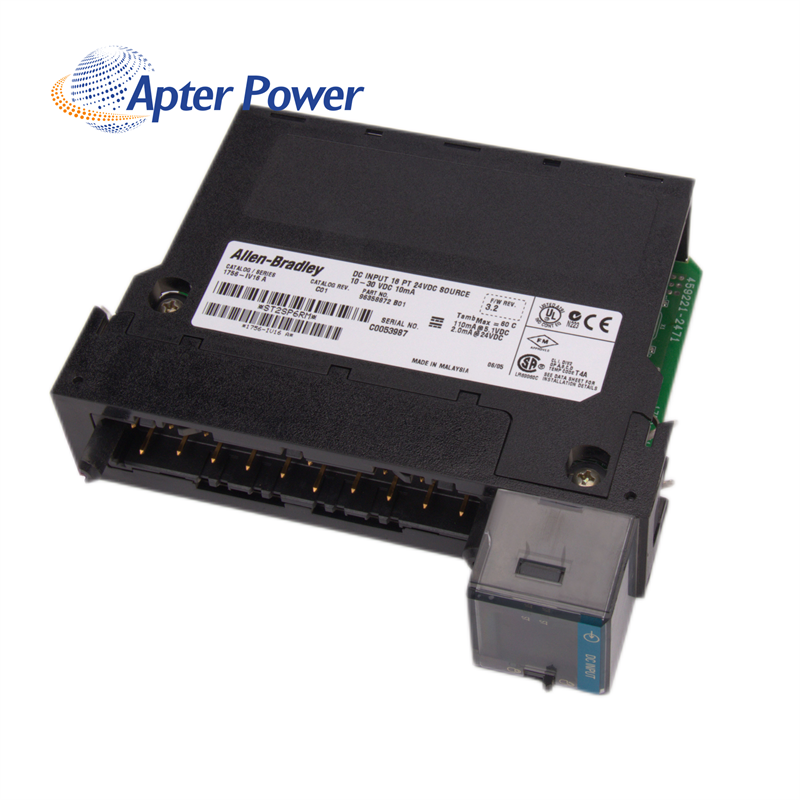

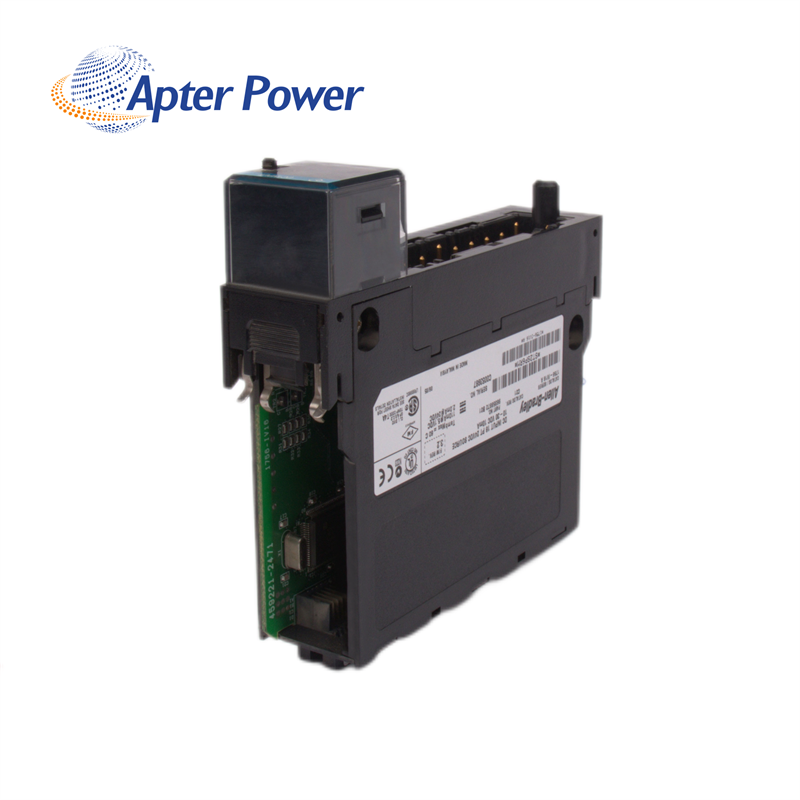

The 1756-IV16 is a digital sourcing I/O module. This input module has 16 inputs available, with 8 points in a group. Compatible with the ControlLogix 1756 chassis, it requires a removable terminal block housing, or RTB, which can either be the 1756-TBNH or 1756-TBSH before it can be attached to the chassis. Using the RSLogix 5000, you can configure a change of state or input filter times for the 1756-IV16 module. Only an input data format is used by this module. The operating voltage range of the 1756-IV16 module is from 10 to 30 Volts DC and it has a 12/24 Volt DC source voltage category. It also has a nominal input voltage of 24 Volts DC. Its total backplane power is 0.61 Watts and maximum inrush current is 250 milliamps.
The 1756-IV16 has a maximum input impedance of 3.2 kΩ at 30 Volts DC, a maximum power dissipation of 5.1 Watts at 60 Degrees Celsius, and a thermal dissipation of 18.47 BTU/hour. It also has a continuous isolation voltage of 250 Volts. During an off-state, this module has a maximum voltage of 5 Volts DC and a maximum current of 1.5 milliamps. When it is in an on-state, the 1756-IV16 has a current range of a minimum of 2 milliamps at 10 Volts DC and a maximum of 10 milliamps at 30 Volts DC. The 1756-IV16 module has a screw to backplane input delay time. This varies depending on if it going from an 'off' to 'on' state or vice versa.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
What happens next?
 |
1. Email confirmation You will get an email confirming that we have received your enquiry. |
 |
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
 |
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |

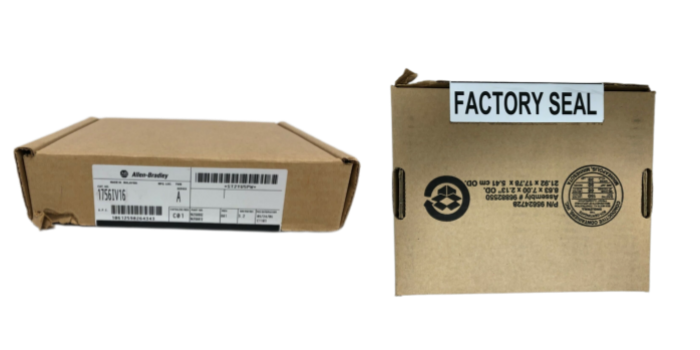

Original factory packing
Shipping packing process
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
What happens next?
|
|
1. Email confirmation You will get an email confirming that we have received your enquiry. |
|
|
2. Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition. |
|
|
3. Your quote You will receive a comprehensive quote tailored to your specific needs. |
Please click the link below to access the product manual.
uploadfile/downloads/1756-IV16%20%EF%BC%881%EF%BC%89.pdf
