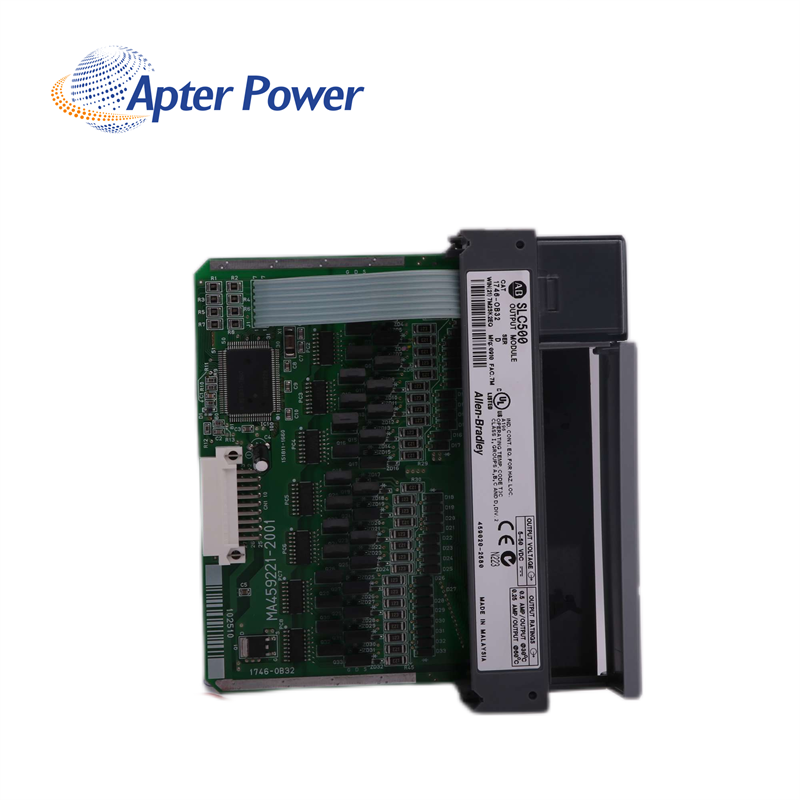

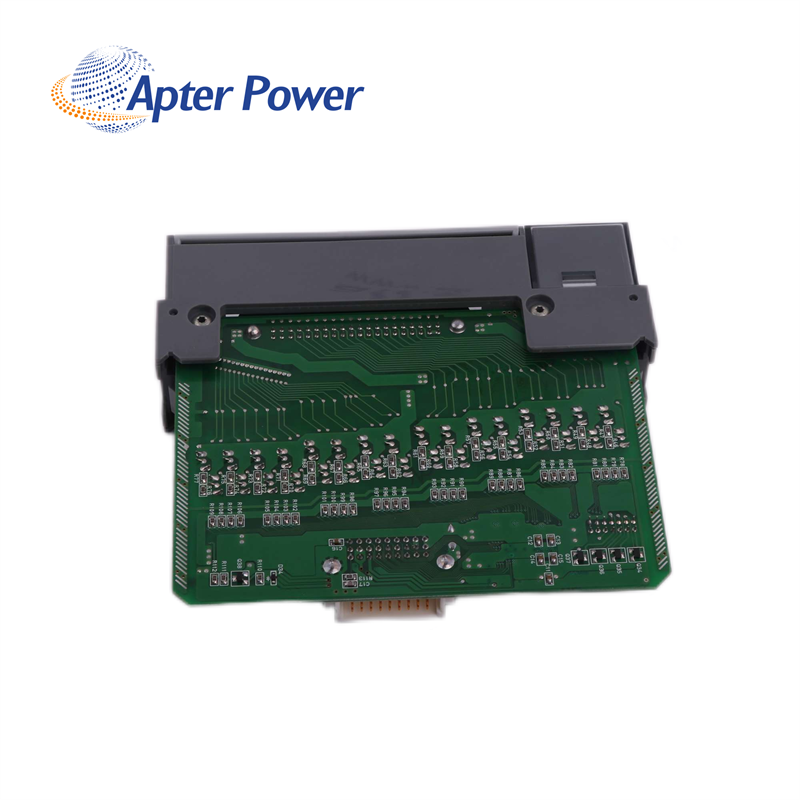

1746-OB32/D SLC 32 Point Digital Output Module

Manufacturer

Automation

Condition

100% New Original

Brand

Voltage Range

5-50 Volts DC

Part Number/Catalog No.

1746-OB32/D

Outputs

32

Module Type

Digital Output Module

Applications

High Current

Manufacture Year

2022

Backplane Current

(5 Volts)190 mA

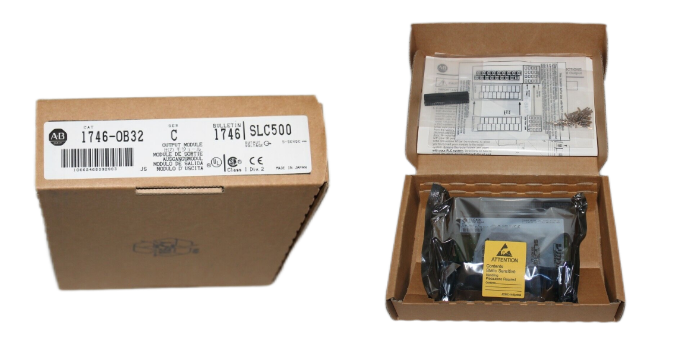

Product Package

Original Package

Current/Module

8 amps

The 1746-OB32 has 0.25A at 0-60 Deg. Celsius nominal current on each output point and the minimum current load of 1mA for every output channel. The module has an average 8A nominal current and a 2A current per common. The maximum voltage loss in the circuit in the ON state is 1.2V at 0.5A and it has a surge of 1.0A for 1ms repeatable every 2s across each output point, a power dissipation of 0.172W per point, and a total module heat dissipation of 6.45W.

The 1746-OB32’s operating temperature ranges between 0 and 60 deg. Celsius (32 and 140 deg. Fahrenheit) at 5-95% non-condensing humidity and it can withstand an operating shock and vibration of 30G and 2.5G respectively at 10-200Hz.

The 1746-OB32 module draws 0.19A of backplane current at 5V DC and it provides an output circuit isolation tested at 1500V AC for 1 minute. It has a maximum signal delay time of 0.1ms in ON and 1ms in OFF mode and the maximum circuit current leakage in the OFF state is 1mA.
