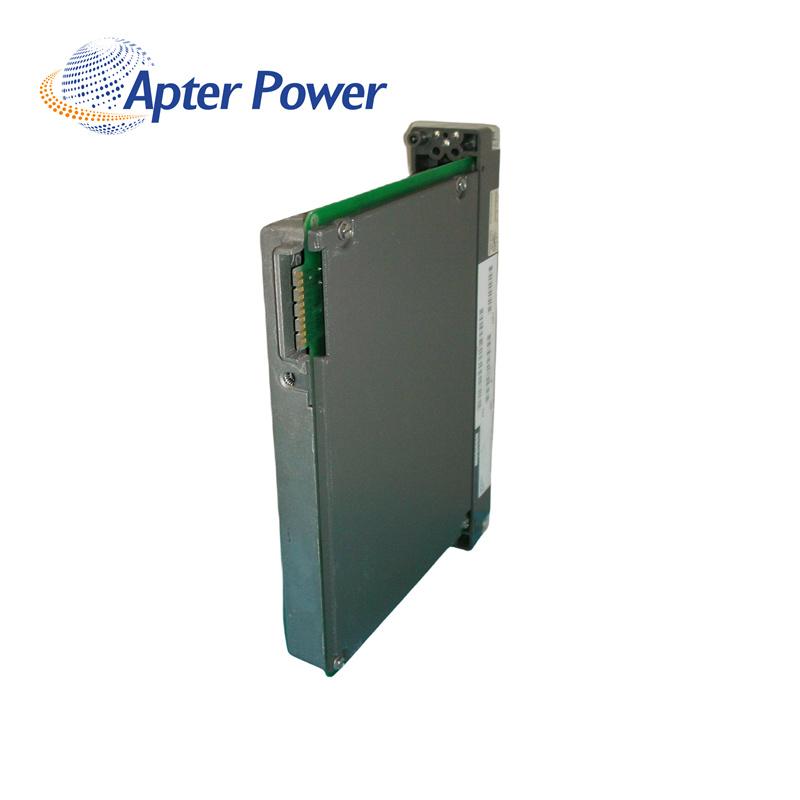

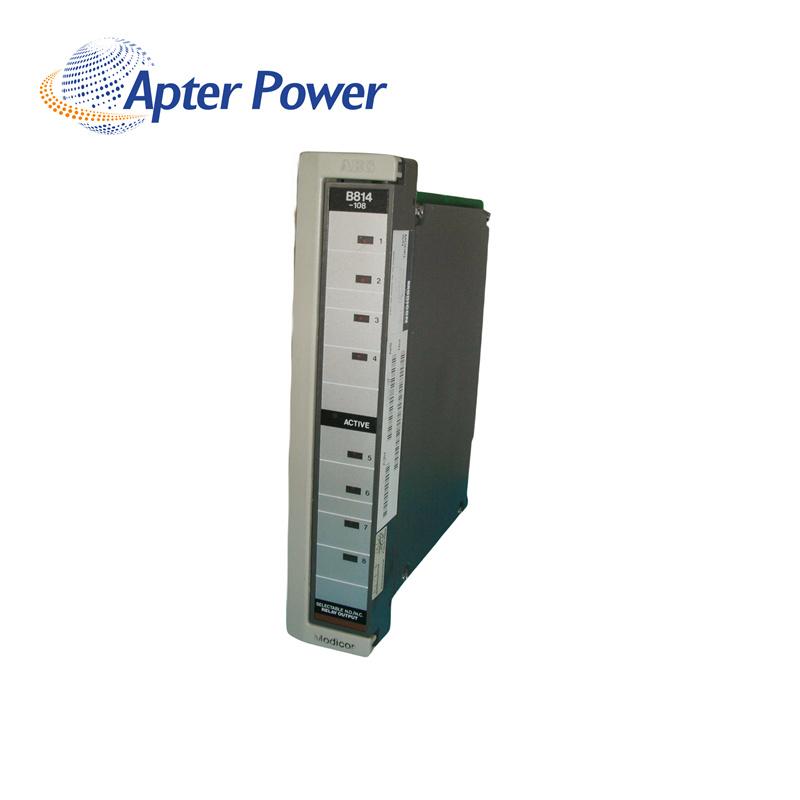

Schneider AS-B814-108 Relay Output Module

Manufacturer

Schneider

Condition

100% New Original

Brand

Schneider

Loop voltage

28 V AC

Part Number

AS-B814-108

Temperature

-40…85 °C

Product Name

Relay Output Module

Bus Current

320 mA

Manufacture Year

2022

Power Dissipation

3.5 W

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The AS-B814-108 is a Relay Output Module.The B814-108 Relay Output Module converts signals from the PLC to eight independent relay outputs. Each output is capable of driving a relay, pilot lamp, motor starter, solenoid, or any other load up to 5.0 A. Each of the eight outputs is electrically isolated from the I/O bus and from the other seven outputs by the relay coil. The module is designed to withstand the high surge currents typical of industrial loads.

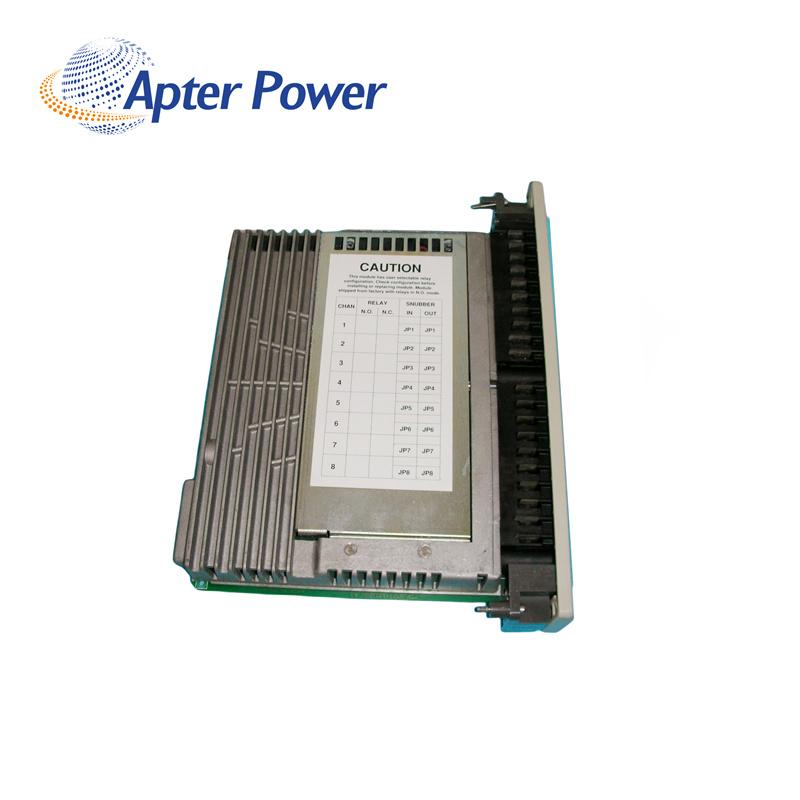

The B814 is initially shipped with all eight channels jumpered for the normally open configuration. You may optionally wire any of the channels for normally closed operation if desired. This is done by transferring a wire jumper from one tab to another on the printed circuit board. Refer to the label on the side of the module.
