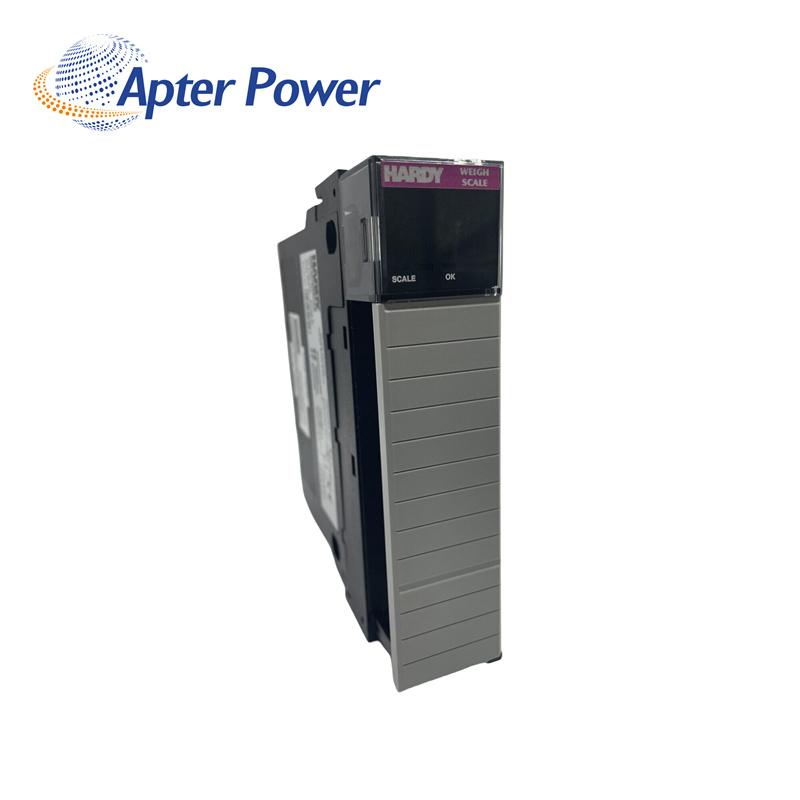

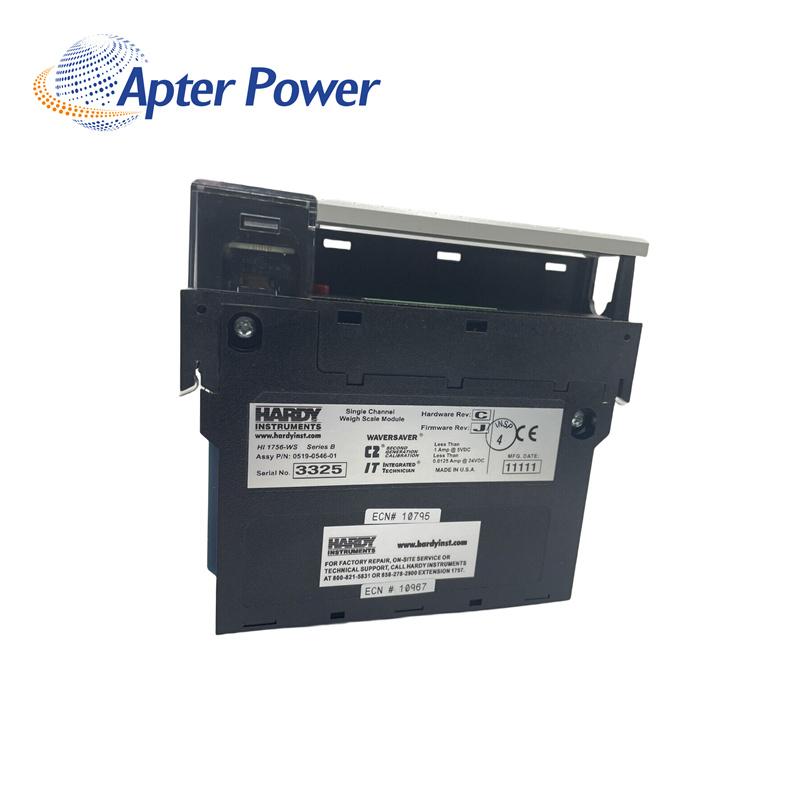

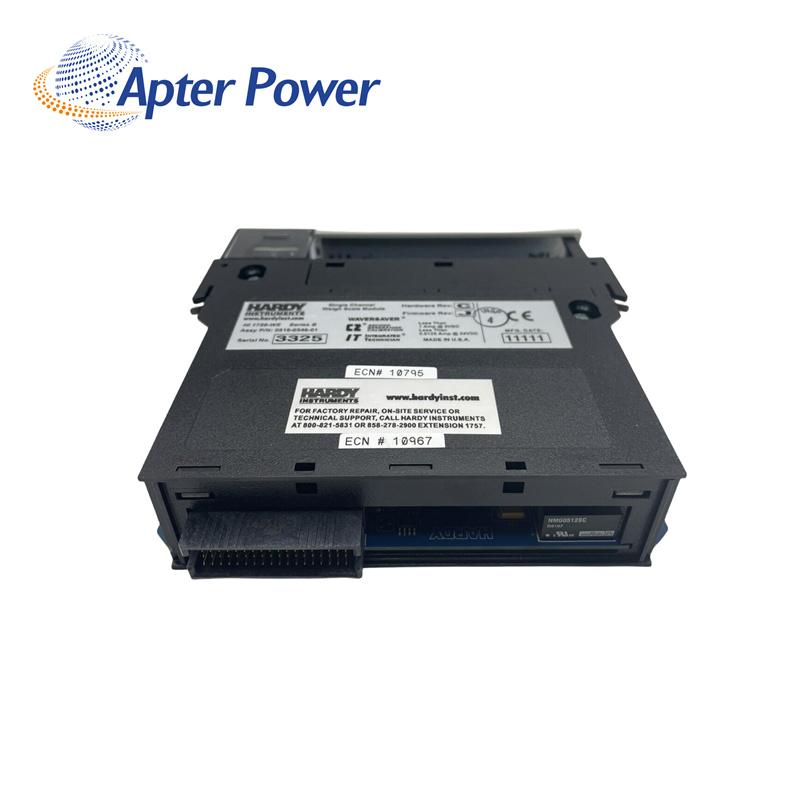

HARDY 1756-2WS Weight Scale Module

Manufacturer

HARDY

Condition

100% New Original

Brand

HARDY

Humidity

0~90% RH

Part Number

1756-2WS

Nominal voltage

5 - 8.75 VDC

Product Name

Weight Scale Module

Temperature

-25 °C to +60 °C

Manufacture Year

2022

Nominal current

5…30 mA

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The 1756-2WS module is a dual scale module and it takes up one slot in the ControlLogix chassis. The module reduces installation costs and enhances speed because external Ethernet switches and routers are not required. The module collects data from load cells or sensors and transmits the collected data to the ControlLogix processor over the chassis backplane.

The 1756-2WS module supports C2 Electronic Calibration which enables calibration without test weights. The Wavesaver module feature eliminates plant vibration effects around the scale. The 1756-2WS scale module supports hot-swapping, also known as insertion and removal under power.

The 1756-2WS scale module draws less than 0.0125 Amps of current at 24 Volts DC and less than 1 Amp of current from the chassis backplane at 5 Volts DC. The module can sense 5 Volts DC and it can accept input signals ranging from -0.3 to 15.3 millivolts.
