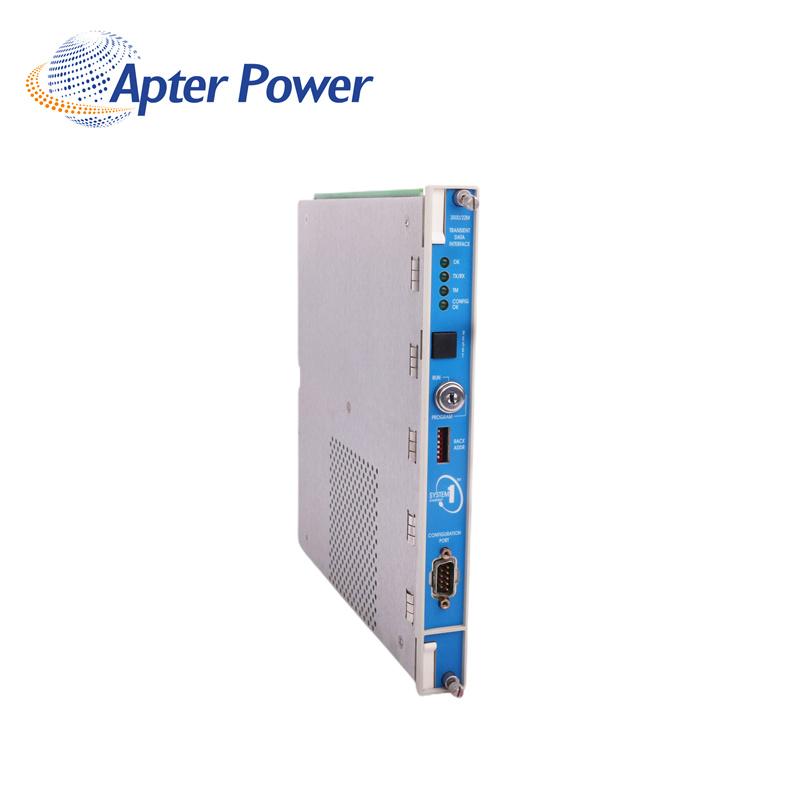

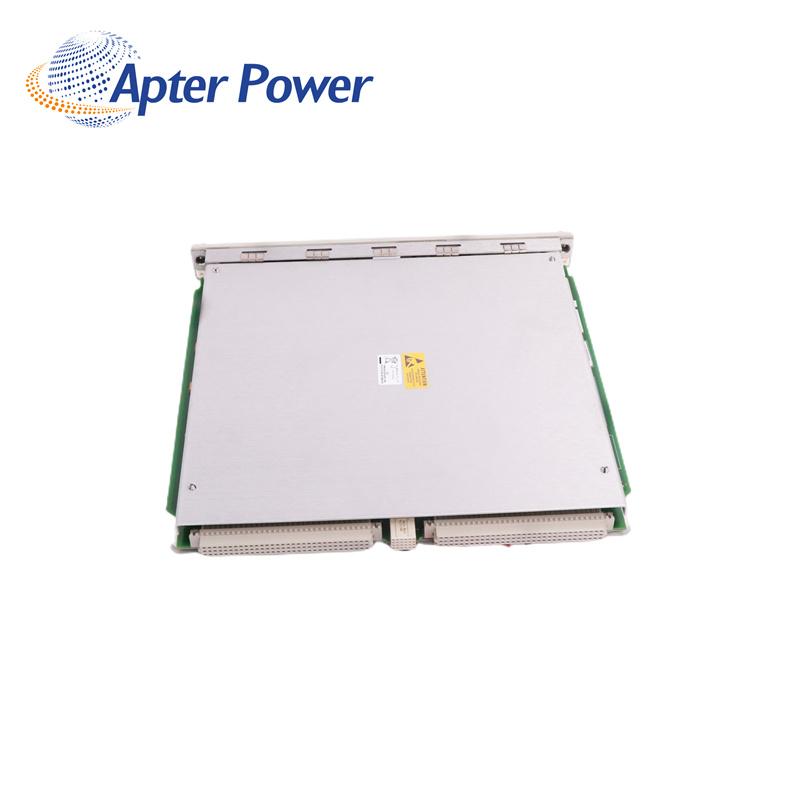

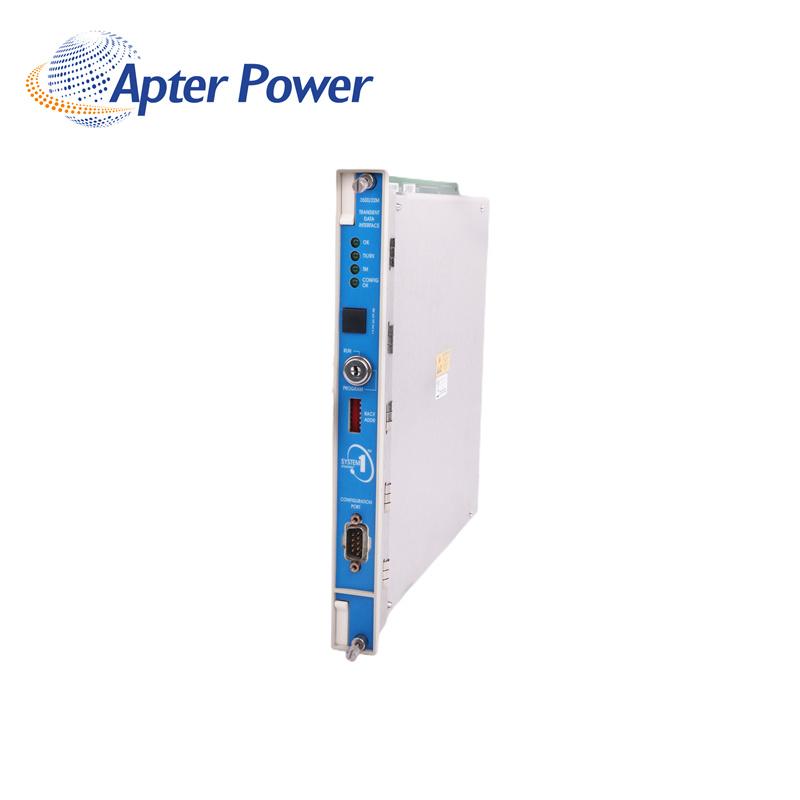

Bently Nevada 3500/22M 138607-01 Transient Data Interface

Manufacturer

GE

Condition

100% New Original

Brand

Bently Nevada

Warranty

one year

Part Number

3500/22M 138607-01

Humidity

95%, non-condensing

Product Name

Transient Data Interface

Storage Temperature

-40°C to +85°C

Manufacture Year

2022

Operating Temperature

-30°C to +65°C

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.

The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.

Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection.
